Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

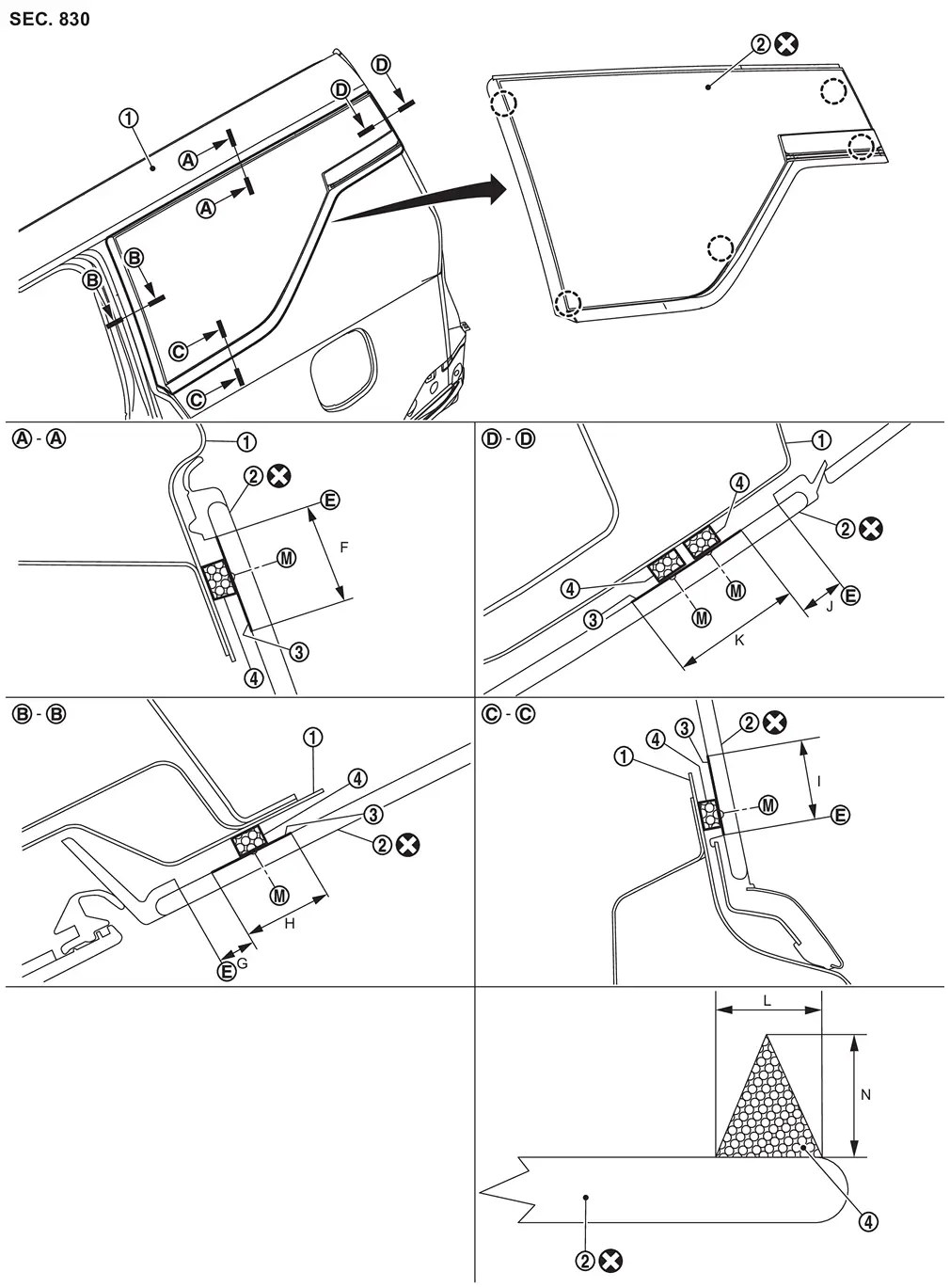

 | Body side outer panel |  | Side window glass |  | Glass primer |
 | Adhesive | ||||
 | Edge |  | Adhesive mark | ||
 | : Clip | ||||
 | : Always replace after every disassembly. | ||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | ||||
|---|---|---|---|---|---|---|
| L | N | |||||
| Side window glass - Body side outer panel |  - | F | From edge, more than 20.0 (0.79) | 7.0 + 2.0, - 0.0 (0.28 + 0.08. - 0.0) | 12.0 + 2.0, - 0.0 (0.47 + 0.08, - 0.0) | |
 - | G | From edge, 8.0 (0.32) | ||||
| H | More than 20.0 (0.79) | |||||
 - | I | From edge, more than 20.0 (0.79) | ||||
 - | J | From edge, 11.5 (0.45) | ||||
| K | More than 30.0 (1.18) | |||||
Removal and Installation
REMOVAL
CAUTION:
Never damage body side outer panel.
Remove rear side spoiler. Refer to Removal and Installation.
Remove luggage side upper finisher. Refer toRemoval and Installation .
Disconnect wind ...
