Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front seatback trim and pad. Refer to Disassembly and Assembly.

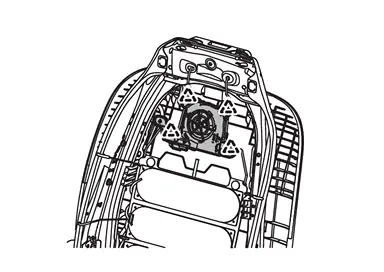

Disengage fixing pawls and then remove front seatback blower motor.
 | : Pawl |
Disengage front seatback blower motor harness fixing clip.
Disconnect front seatback blower motor connector and then remove front seatback blower motor from the front seat.
INSTALLATION
Install in the reverse order of removal.
