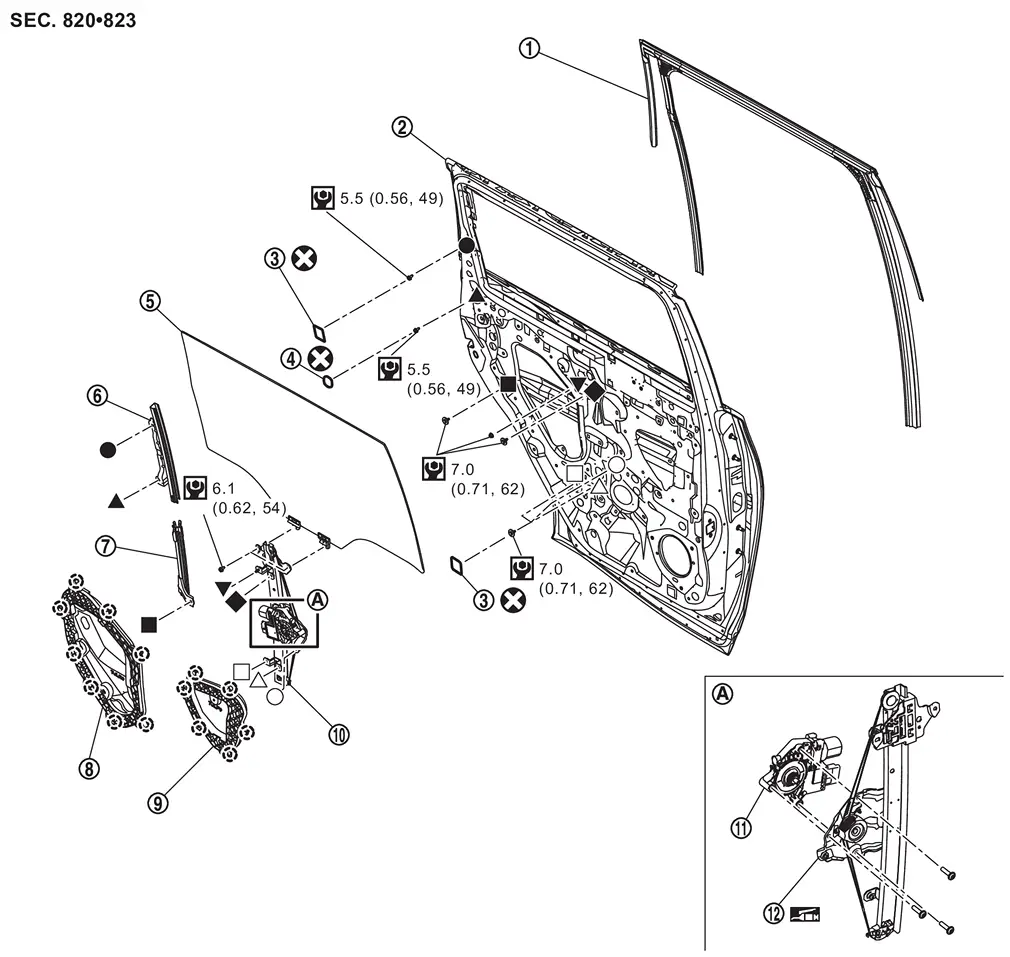

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Glass & Window System — Removal and Installation / Rear Door Glass / Exploded View

	Rear door glass run	Rear door panel	Hole seal 1
	Hole seal 2	Rear door glass	Rear door lower sash upper
	Rear door lower sash lower	Rear door inner frame rear	Rear door inner frame front
	Rear door regulator assembly	Rear door power window motor	Rear door regulator
	: Clip
	: Always replace after every disassembly.
	: N·m (kg-m, in-lb)
	: Body grease
, , , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
