Nissan Armada 2025-2026 Service and Repair Manual: Welding of Ultra High Strength Steel
SPOT WELDING
Spot welding is limited to ultra high strength steel (tensile strength: 980 MPa) according to the welding conditions listed below.
CAUTION:
If the below welding conditions cannot be met, then perform plug welding.
Never spot weld ultra high strength steel of tensile strength more than 980 MPa. For this type of ultra high strength steel, perform plug welding.
The below welding condition is applicable only to this vehicle. Never apply this same welding condition to other vehicles.
| Welder tip diameter | 6 mm |
| Welding pressure (Gun force) | 3300 N |
| Panel configuration | Combination of a plate of tensile strength 980 MPa and that of tensile strength less than 980 MPa. (Up to 3 plates) |
Welding current and weld time
| |
| Welding current | Weld time | Welding pressure (Gun force) | Description | |||
| 50 Hz | 60 Hz | |||||
 | Before welding | 0 A | - | - | 0 N | - |
 | First energization | 7000 A | 0.04 sec (2 cycle) | 0.05 sec (3 cycle) | 3300 N | Secure an energization path |
 | Cool down | 0 A | 0.02 sec (1 cycle) | 0.02 sec (1 cycle) | 3300 N | - |
 | Second energization | 7500 A | 0.12 sec (6 cycle) | 0.12 sec (7 cycle) | 3300 N | Main energization for nugget formation |
 | Keep pressurization | 0 A | 0.10 sec (5 cycle) | 0.08 sec (5 cycle) | 3300 N | - |
 | After welding | 0 A | - | - | 0 N | - |
PLUG WELDING
To weld ultra high strength steel of tensile strength 980 MPa or more, perform plug welding observing the welding hole diameter described in the manual.
CAUTION:
To perform plug welding, use fuel mixture (Ar 80% + CO2 20%) for shielding gas of welder.
Never use carbon dioxide gas (CO2 100%) as shielding gas of welder. Using CO2 100% gas results in inadequate weld strength.
When welding hole diameter cannot be met, make multiple holes (smaller diameter) so that the sum of the hole areas equals the area of the original weld hole.

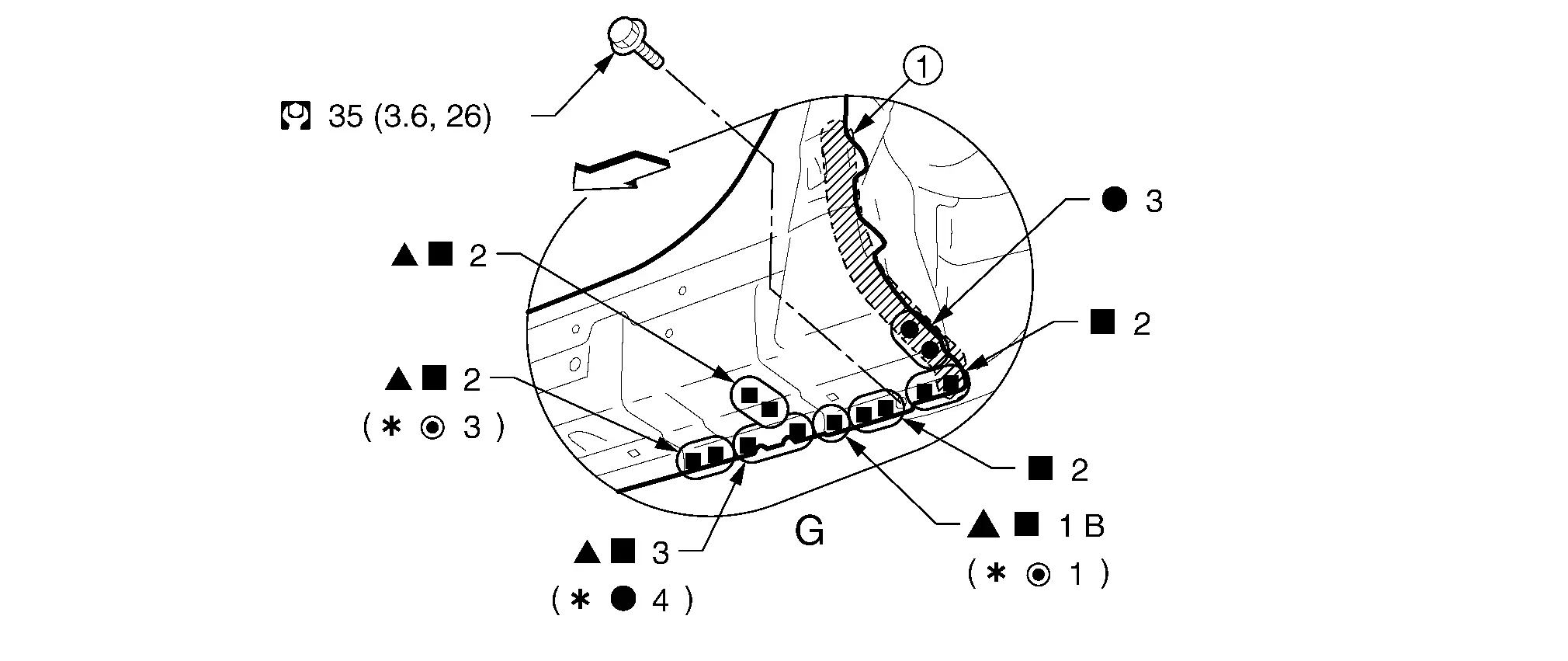

EXAMPLE
 | Body sealing | ||||
 : For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to ″Welding of Ultra High Strength Steel″. | |||||
: Vehicle front
: Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).
: N·m (kg-m, ft-lb)
