Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Roof — Removal and Installation / Moonroof Unit Assembly / Exploded View

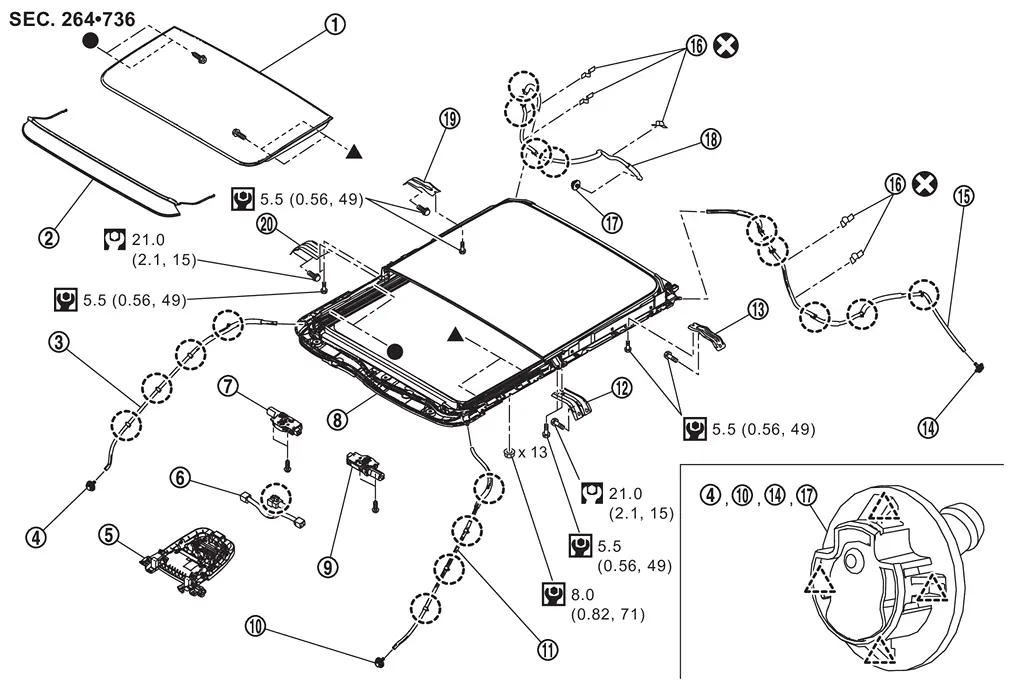

REMOVAL

	Glass lid	Wind deflector	Front drain hose RH
	Front drain connector RH	Map lamp assembly	Harness connector assembly
	Moonroof motor assembly	Moonroof unit assembly	Sunshade motor assembly
	Front drain connector LH	Front drain hose LH	Front moonroof bracket LH
	Rear moonroof bracket LH	Rear drain connector LH	Rear drain hose LH
	Protector tape	Rear drain connector RH	Rear drain hose RH
	Rear moonroof bracket RH	Front moonroof bracket RH
	: Clip
	: Pawl
	: Always replace after every disassembly.
	: N·m (kg-m, in-lb)
	: N·m (kg-m, ft-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

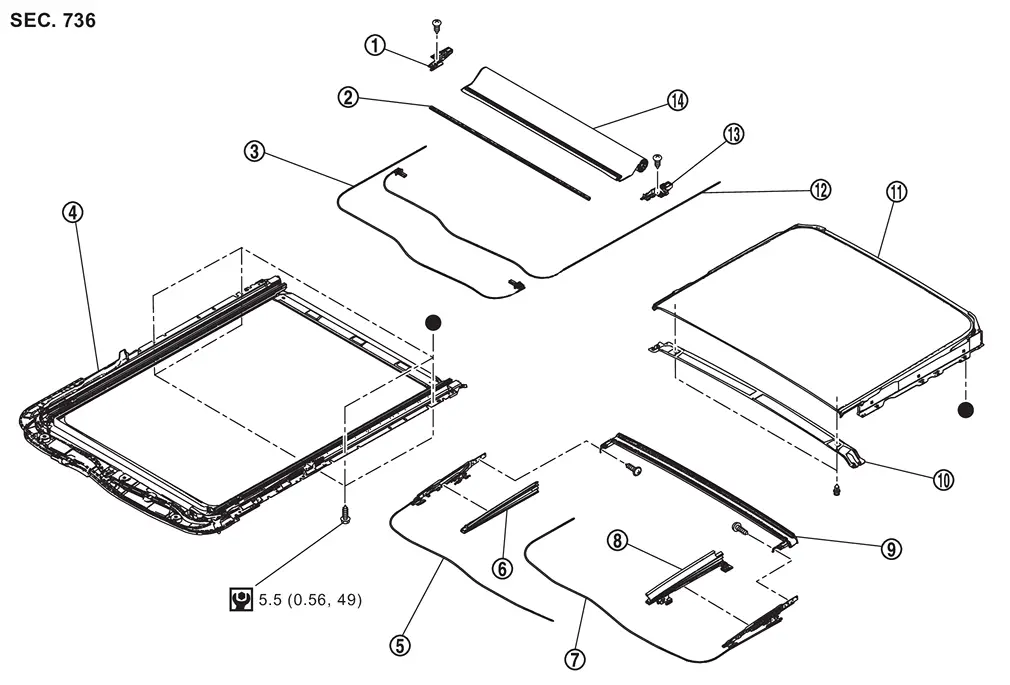

DISASSEMBLY

	Sunshade base RH	Rollshade stay	Sunshade slider LH
	Moonroof frame assembly	Glass lid guide RH	Side trim RH
	Glass lid guide LH	Side trim LH	Drain assembly
	Center reinforce frame	Rear moonroof glass	Sunshade slider RH
	Sunshade base LH	Sunshade
	: N·m (kg-m, in-lb)
: Indicates that the part is connected at points with same symbol in actual vehicle.

CAUTION: Always work with a helper. When removing/installing moonroof unit assembly, use cloths to protect the seats and trim from damage. REMOVAL Remove wind deflector. Refer to Removal and Installa ...
