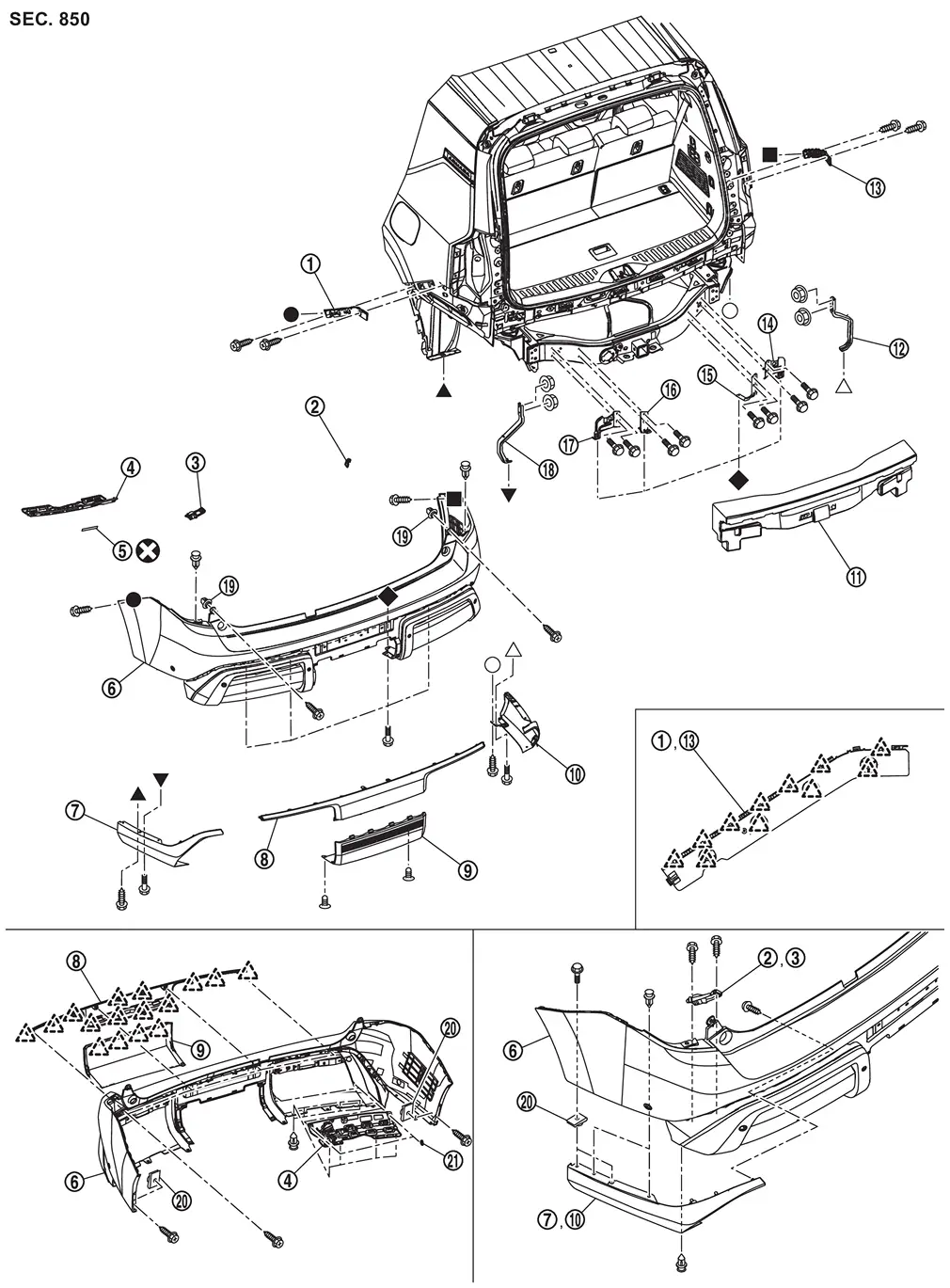

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Exterior — Removal and Installation / Rear Bumper / Exploded View

	Rear bumper side bracket LH	Rear bumper bracket RH	Rear bumper bracket LH
	Hands free sensor bracket (with hands free sensor models)	Double-sided tape [t: 1.2 mm (0.047 in)] (with hands free sensor models)	Rear bumper fascia
	Rear bumper molding LH	Rear bumper finisher upper	Rear bumper finisher lower
	Rear bumper molding RH	Rear bumper energy absorber	Rear bumper side stay RH
	Rear bumper side bracket RH	Rear bumper stay A RH	Rear bumper stay B RH
	Rear bumper stay B LH	Rear bumper stay A LH	Rear bumper side stay LH
	Grommet	U nut	Bumper clip (with hands free sensor models)
	: Pawl
	: Always replace after every disassembly.
, , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.

WARNING: CAUTION: Rear bumper fascia assembly is made of resin. Never apply excessive force to it, and be careful to prevent contact with oil. REMOVAL Remove rear combination lamp. Refer to Removal an ...
