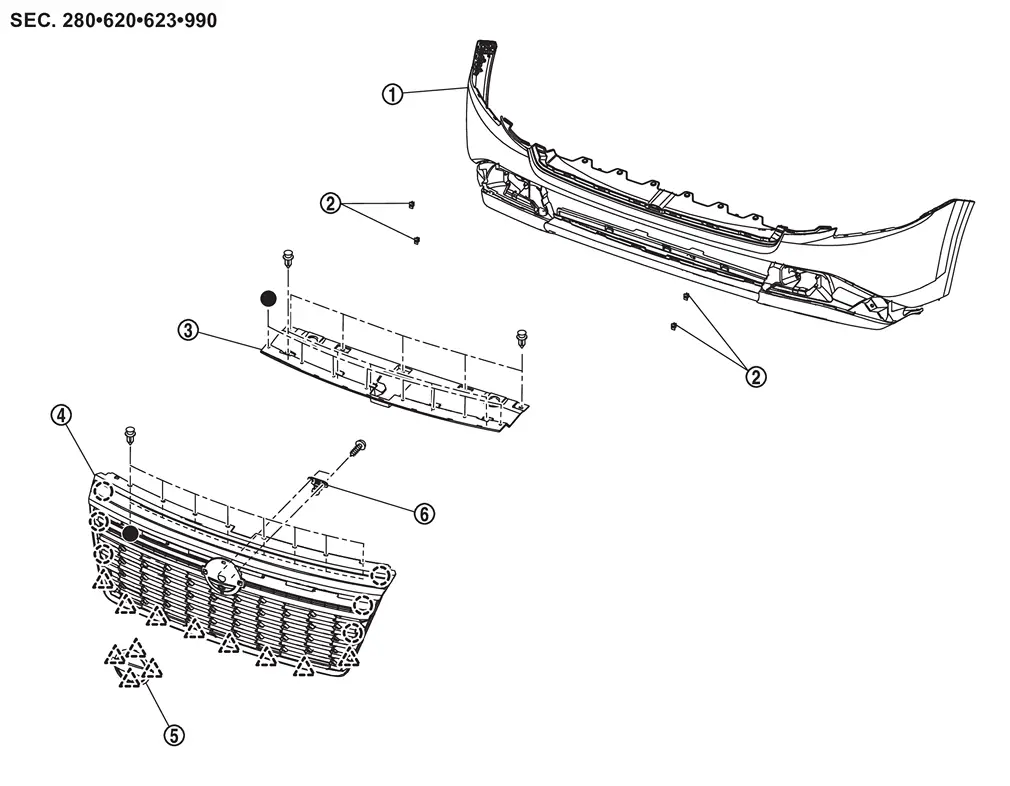

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Off Road Models

...

Removal and Installation

REMOVAL Fully open hood assembly. Remove fixing clips . Remove fixing clips . Disengage front grille fixing clips to secure workspace, and then remove front grille upper . : Clip Disengage f ...
