Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

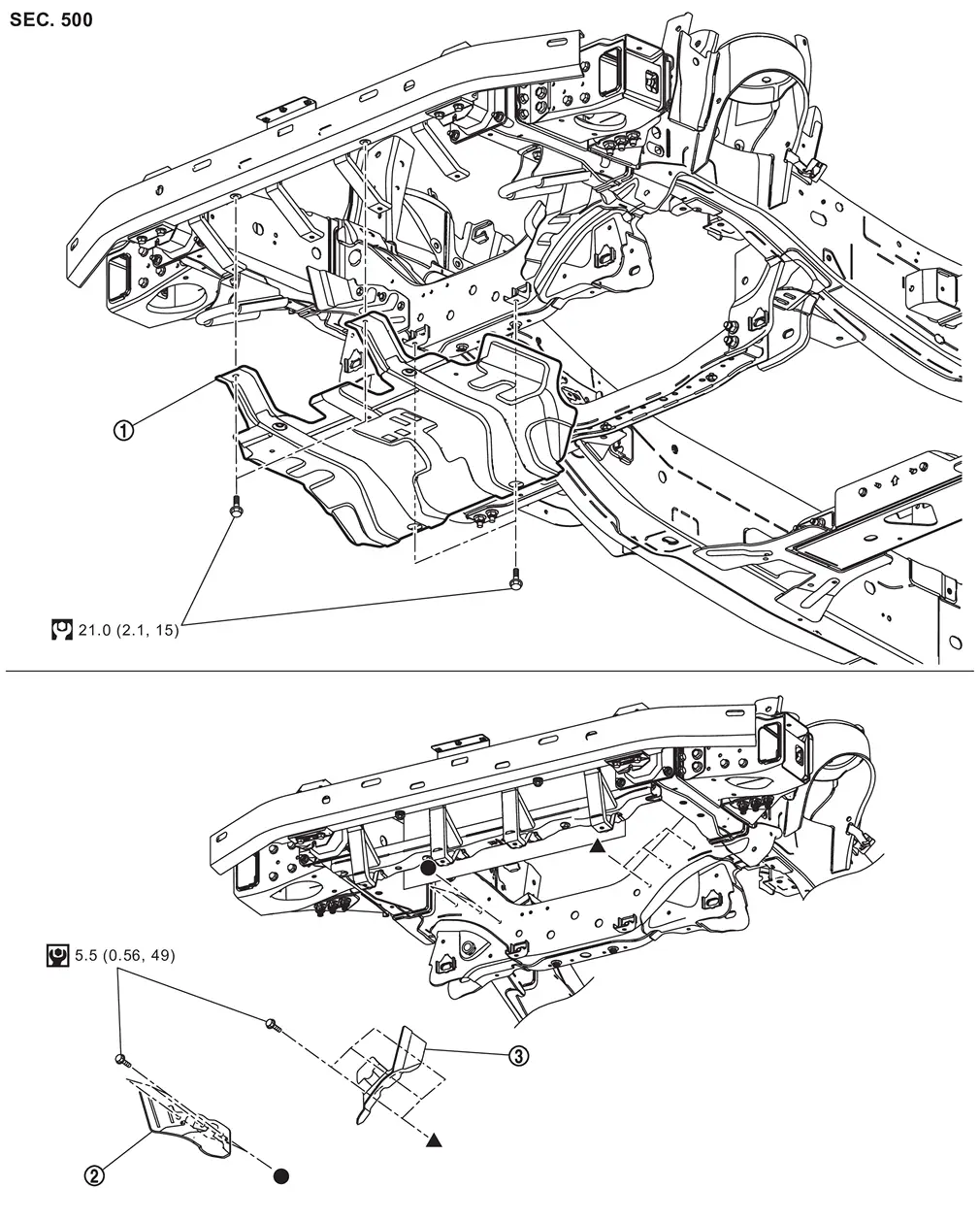

Off Road Models
 | Front under cover |  | Splash guard RH |  | Splash guard LH |
 | N·m (kg-m, in-lb) | ||||
 | N·m (kg-m, ft-lb) | ||||
 ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||

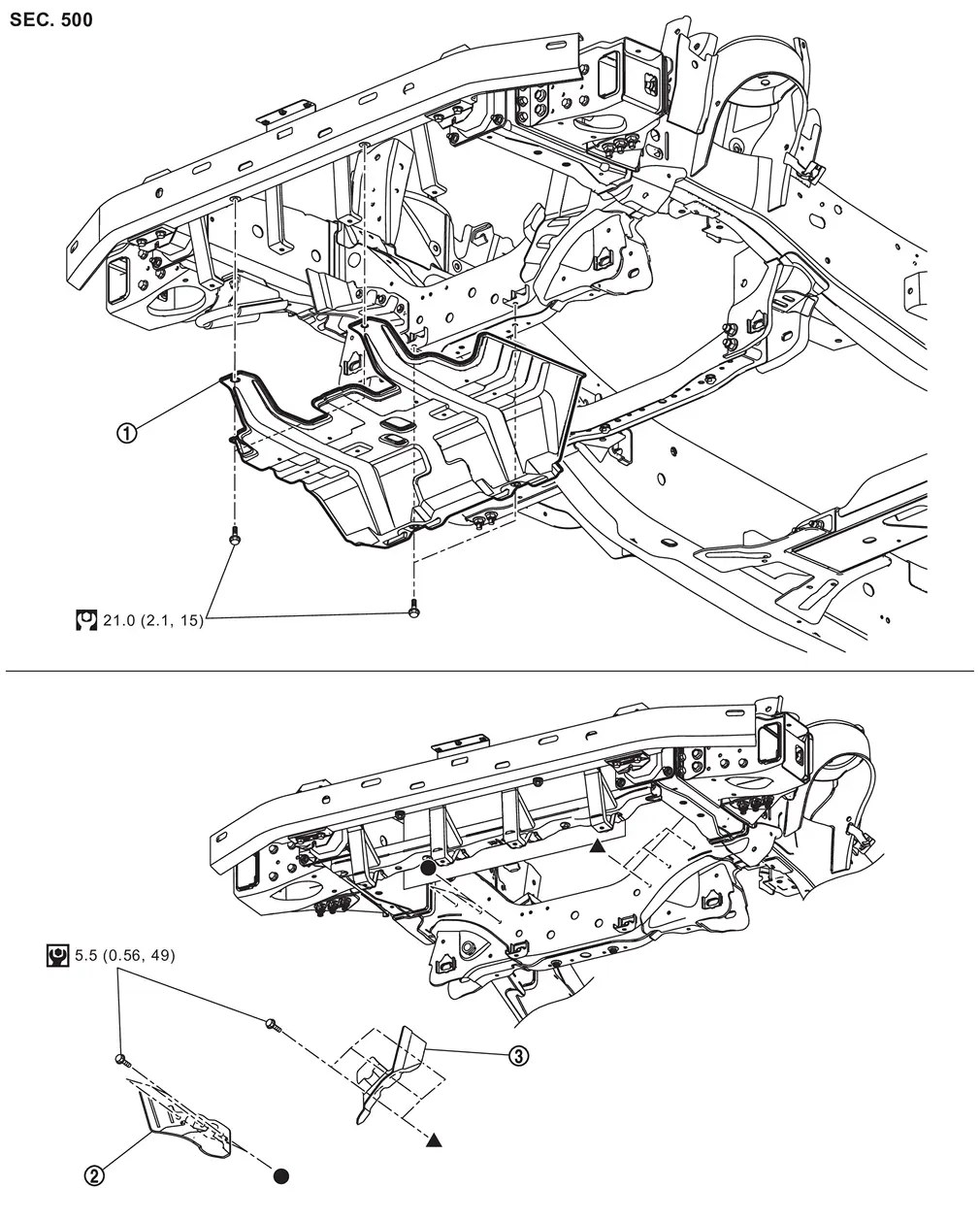

City Models
| Front under cover | | Splash guard RH | | Splash guard LH |
| N·m (kg-m, in-lb) | ||||
| N·m (kg-m, ft-lb) | ||||
| , : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Removal and Installation
WARNING:
REMOVAL
Remove mounting bolts, and then remove front under cover.
Remove mounting bolts, and then remove splash guard.
INSTALLATION
Install in the reverse order of removal. ...
