Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

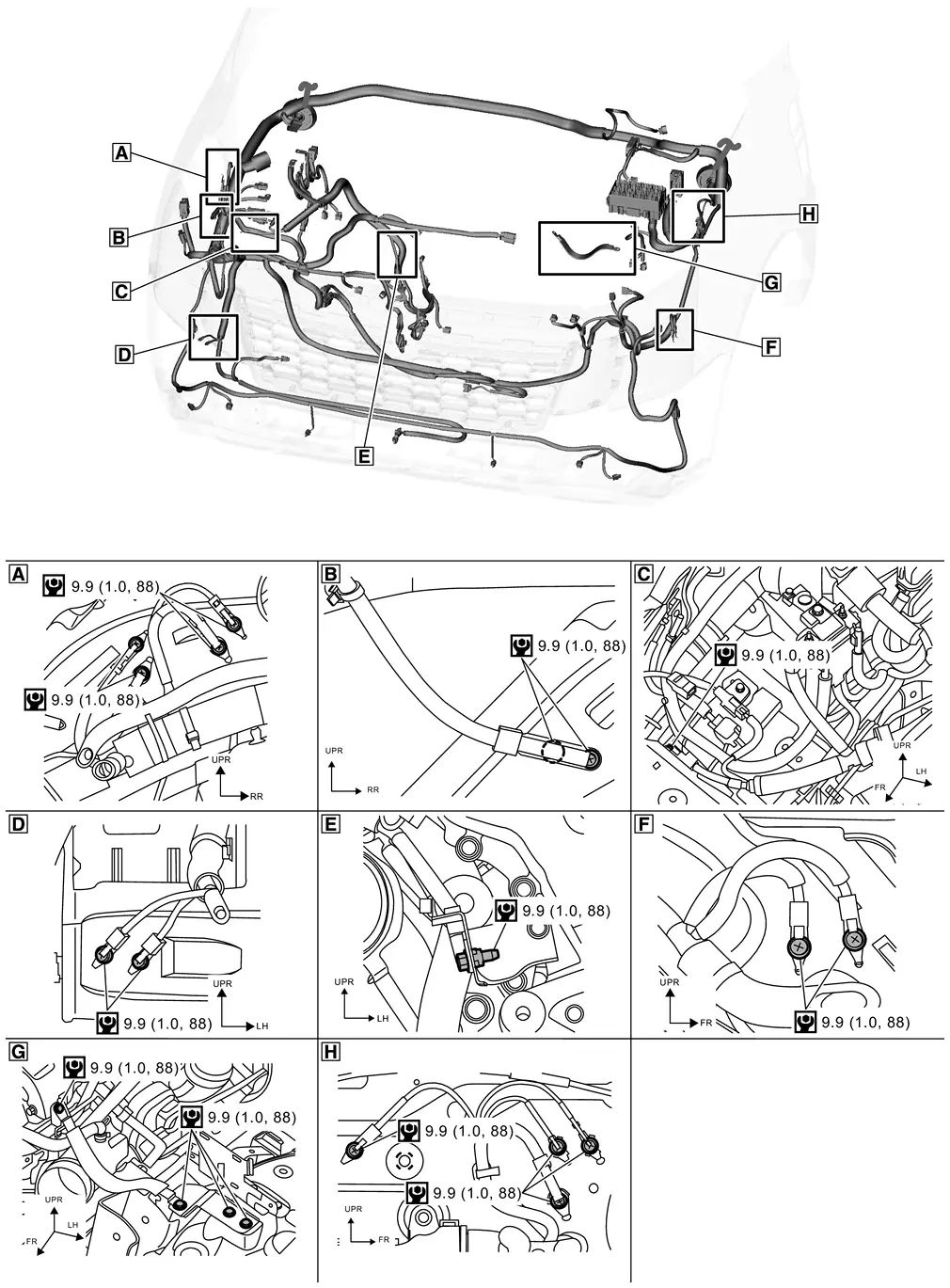

ENGINE ROOM HARNESS

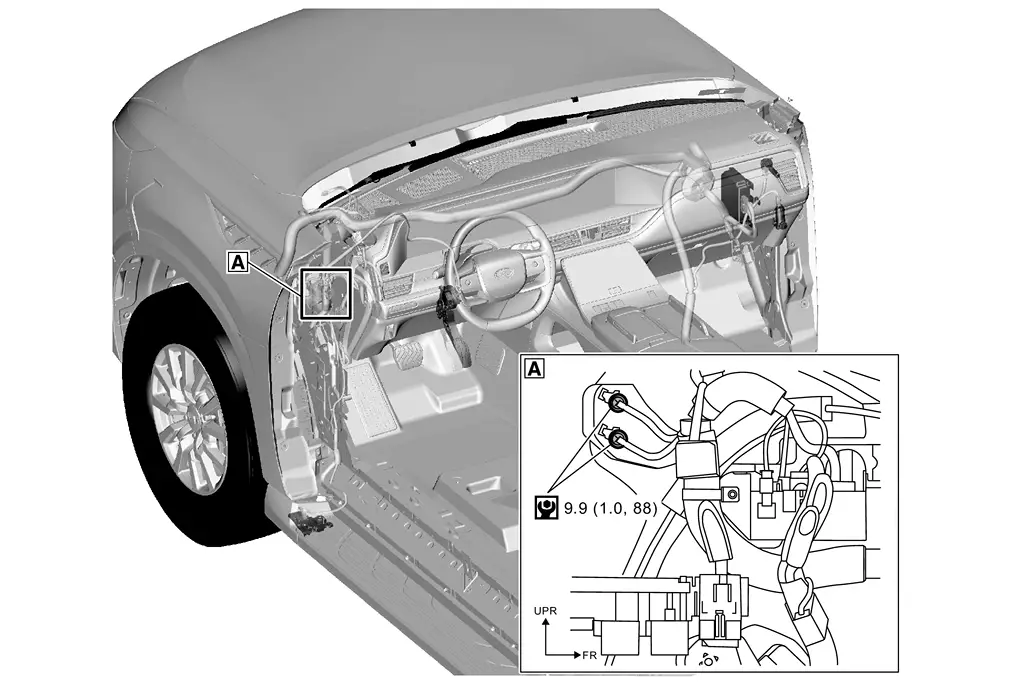

 | Left side of dash side panel | ||||
 | : N·m (kg-m, in-lb) |
| Right side of hoodledge |  | Right side of hoodledge |  | Right side of engine compartment |
 | Right side of radiator core support |  | Located on the Engine |  | Left side of hoodledge |
 | Left side of engine compartment |  | Left side of hoodledge | ||
| : N·m (kg-m, in-lb) |

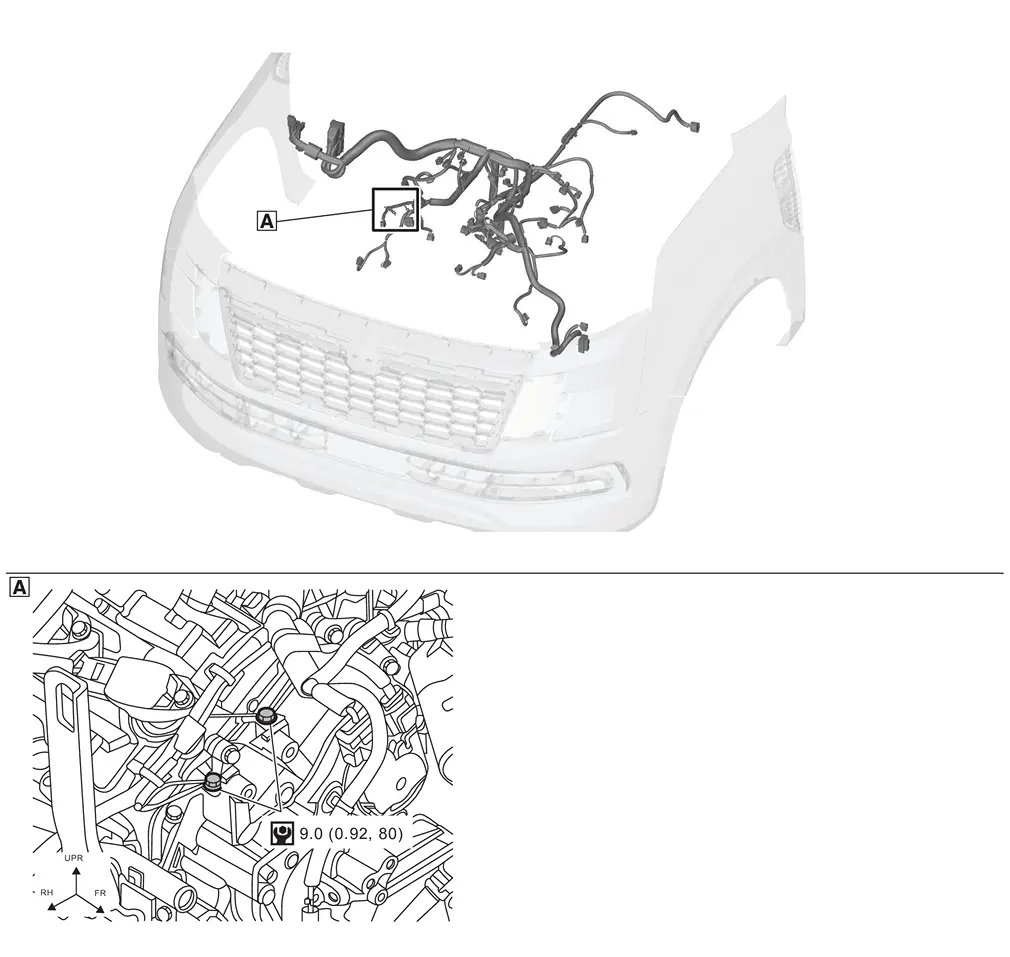

ENGINE CONTROL HARNESS
| Located on the engine front right side | ||||
| : N·m (kg-m, in-lb) |

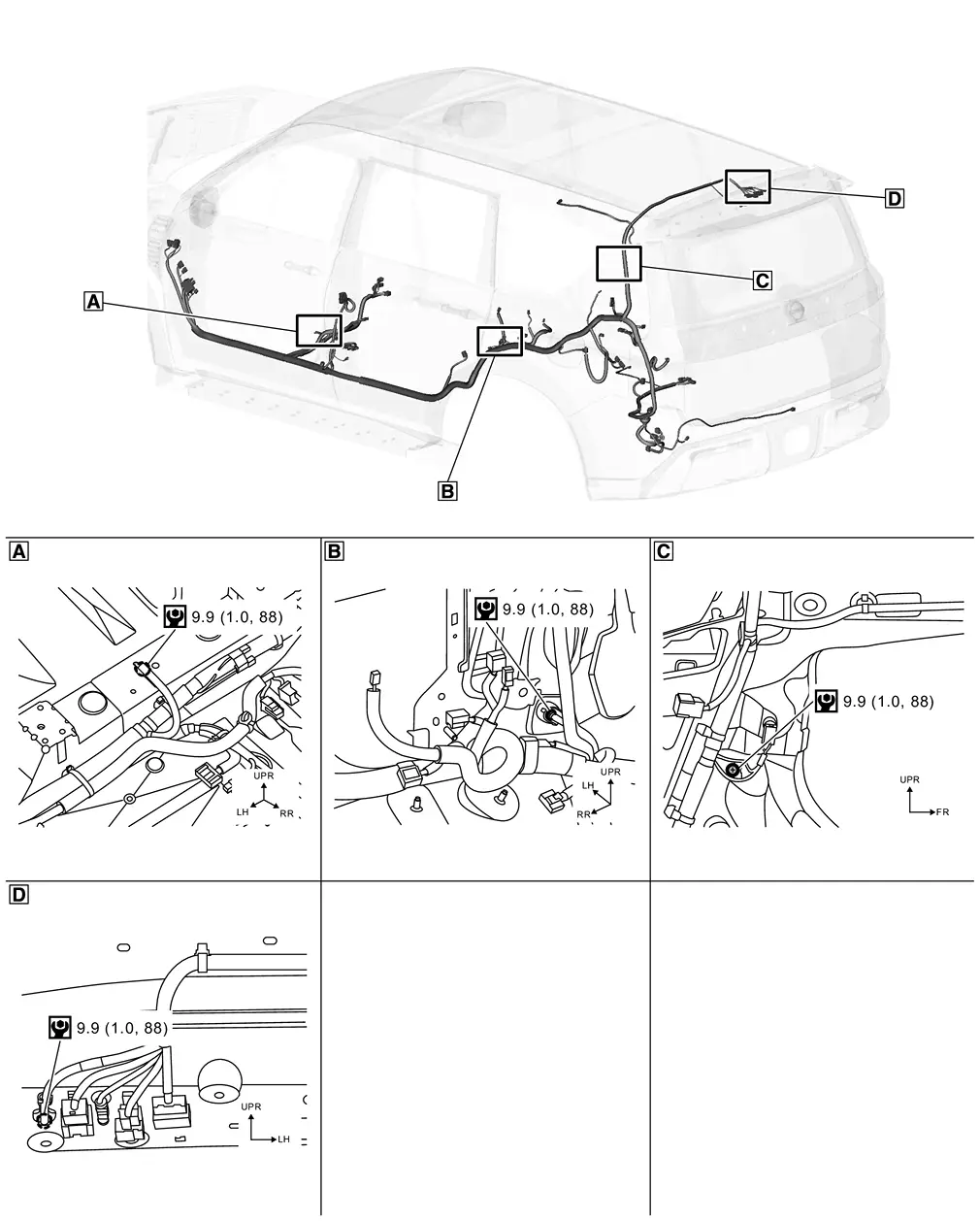

BODY HARNESS (LH SIDE)
| Underside of driver's seat | | Left side of luggage room | | Left side of side panel |
| Upside of back door | ||||
| : N·m (kg-m, in-lb) |

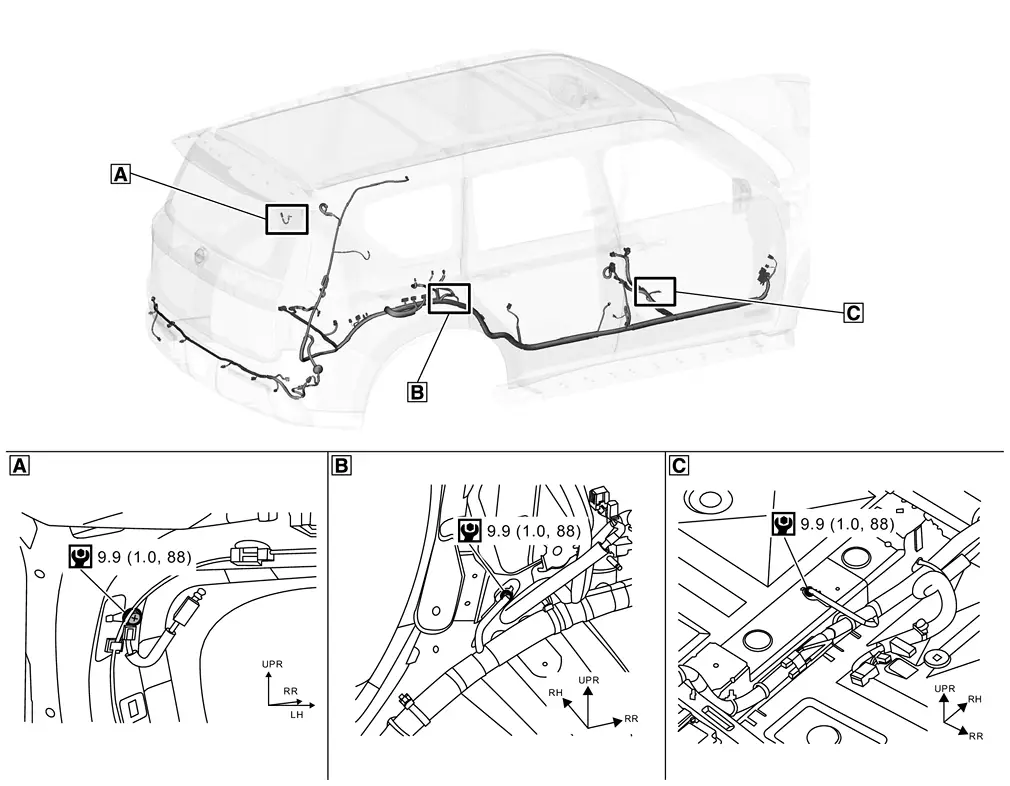

BODY HARNESS (RH SIDE)
| Right side of back door | | Right side of luggage room | | Underside of passenger's seat |
| : N·m (kg-m, in-lb) |

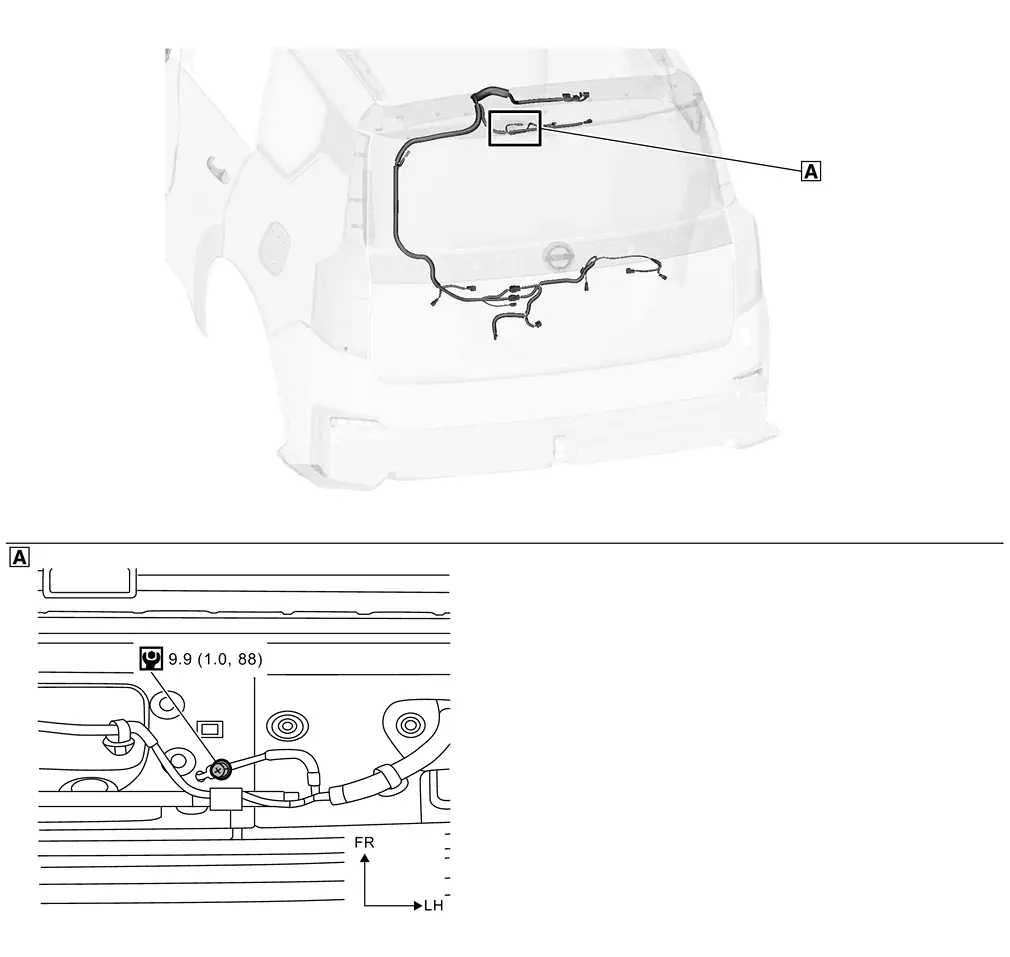

BACK DOOR HARNESS
| Upside of back door | ||||
| : N·m (kg-m, in-lb) |

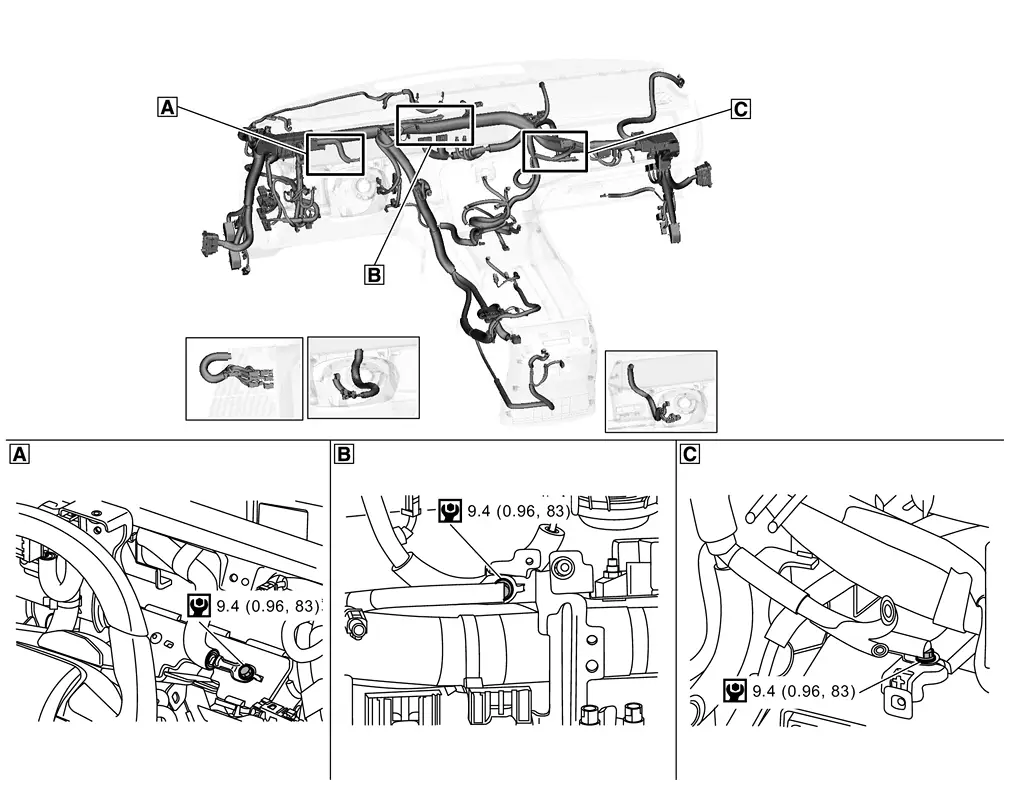

MAIN HARNESS
| Lower side of display unit | | Back side of display unit | | Right side behind the instrument panel |
| : N·m (kg-m, in-lb) |
Earth
...
Other materials:
Special Service Tools
The actual shape of the tools may differ from those illustrated here.Tool number
(TechMate No.)
Tool name Description   —
(J-46534)
Trim Tool Set
Removing trim components —
(1–20–2851–1)
ICC alignment kit*
Uses for radar alignment
* NOTE: Tools 1–20–2721–1–IF, 1–20–27 ...
Engine Compartment
WARNING:
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.
Unit: mm (in)
Unit: mm (in)
«The others» Point Dimension Memo Point Dimension Memo Point Dimension Memo – 833 (32.80) – 1653 (65.08) – ...
Removal and Installation
REMOVAL
Remove instrument lower panel LH. Refer to Removal and Installation.
Remove steering column control module bracket mounting screw .
Disconnect steering column control module connector.
Remove steering column control module.
INSTALLATION
Note the following items, and then install in the rev ...
0.0053
