Nissan Armada 2025-2026 Service and Repair Manual: Engine Compartment
WARNING:

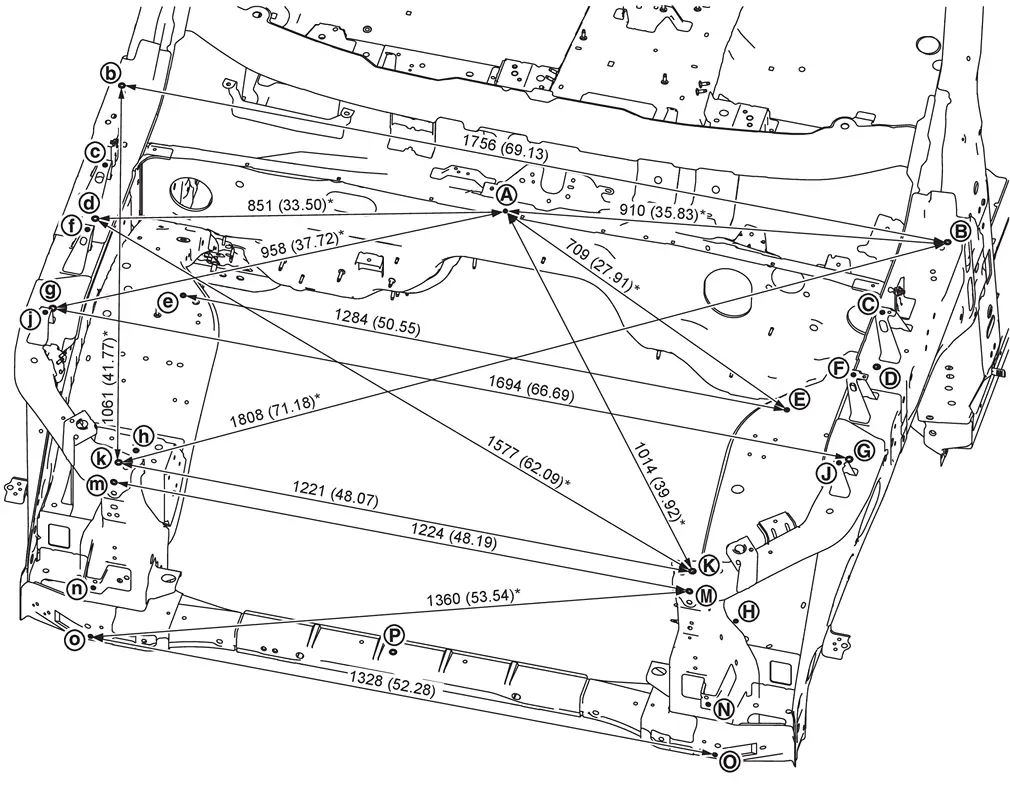

MEASUREMENT
Dimensions marked with ″
″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
 –  | 833 (32.80) | –  | 1653 (65.08) |  –  | 1688 (66.46) | |||
–  | 863 (33.98) |  –  | 1662 (65.43) |  –  | 314 (12.36) | |||
–  | 992 (39.06) | –  | 1482 (58.35) | –  | 1304 (51.34) | |||
–  | 912 (35.91) | –  | 1701 (66.97) | –  | 473 (18.62) | |||
| – | 987 (38.86) | – | 598 (23.54) | –  | 782 (30.79) | |||
 – | 390 (15.35) | – | 522 (20.55) |  – | 717 (28.23) | |||
| – | 1752 (68.98) | – | 1535 (60.43) | – | 1308 (51.50) | |||
–  | 489 (19.25) | – | 1588 (62.52) | – | 160 (6.30) | |||
| – | 1579 (62.17) | –  | 677 (26.65) | –  | 1328 (52.28) | |||
–  | 666 (26.22) | – | 646 (25.43) | – | 709 (27.91) | |||
| – | 1849 (72.80) | –  | 1409 (55.47) | – | 631 (24.84) | |||
| – | 934 (36.77) | –  | 1629 (64.13) | – | 709 (27.91) | |||
 – | 885 (34.84) | – | 433 (17.05) | – | 630 (24.80) | |||
| – | 1728 (68.03) | – | 1502 (59.13) | — | — | |||
| – | 1777 (69.96) | – | 1287 (50.67) | — | — |

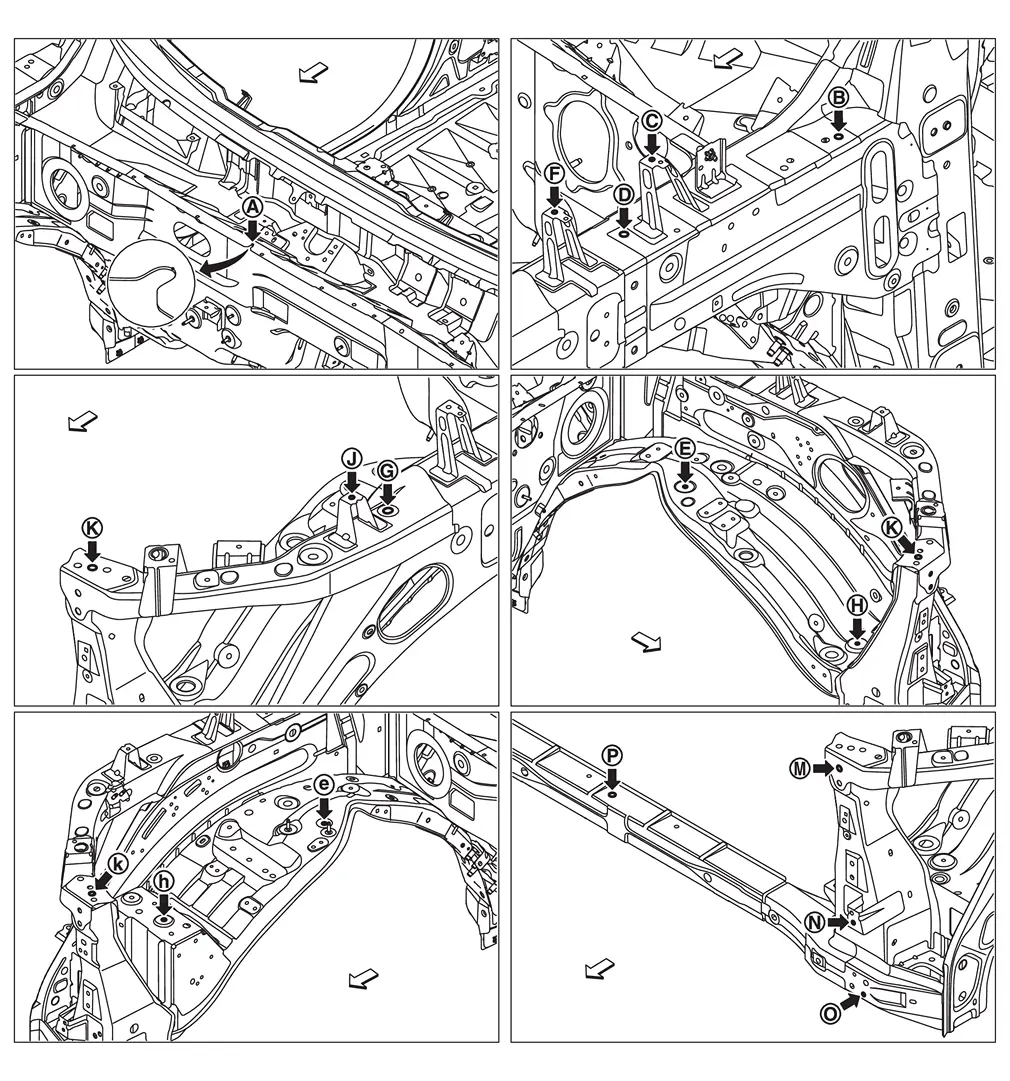

MEASUREMENT POINTS
 : Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
| Upper dash indent of center positioning mark | | Upper radiator core support hole center
: φ11 (0.43) |
| Hood hinge installing hole center φ11 (0.43) | | Battery support front bracket hole center φ9 (0.35) |
| Front fender installing hole center φ7 (0.28) | | Head lamp installing hole center φ7 (0.28) |
| Hoodledge reinforcement hole center φ12 (0.47) | | Front bumper retainer installing hole center φ7 (0.28) |
| Lower hoodledge hole center
: φ7 (0.28) | | Radiator core main support hole center φ12 (0.47) |
Body Center Marks
Factory marks exist on certain parts of the body to indicate the vehicle center. When repairing the vehicle frame (members, pillars, etc.) damaged in an accident, the most accurate and effective repai ...
Underbody
WARNING:
MEASUREMENT (CABIN)
Bottom view
The following figure shows a bottom view of the vehicle.
Unit: mm (in)
: Vehicle front
: Vehicle left side
Unit: mm (in)
«The others» Point Dimension Mem ...
