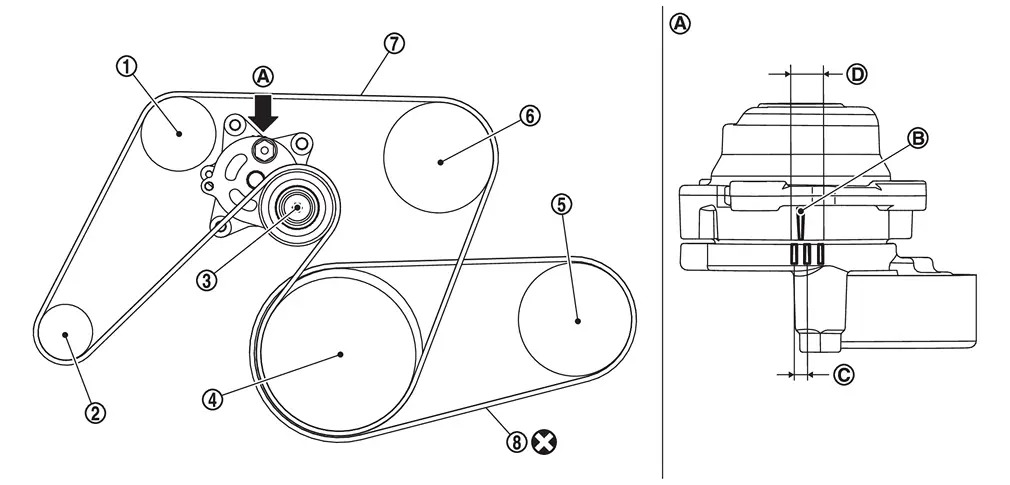

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Idler pulley |  | Alternator |  | Drive belt auto-tensioner |
 | Crankshaft pulley |  | A/C compressor |  | Water pump |
 | Drive belt |  | A/C compressor belt | ||
 | View |  | Indicator |  | Range when new drive belt is installed |
 | Possible use range | ||||
 | Always replace after every disassembly. |
Drive Belts
...
Adjustment
Refer to Drive Belt. ...
