Nissan Armada 2025-2026 Service and Repair Manual: FUEL TANK : Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Engine / Fuel System — Removal and Installation / Fuel Tank / FUEL TANK : Exploded View

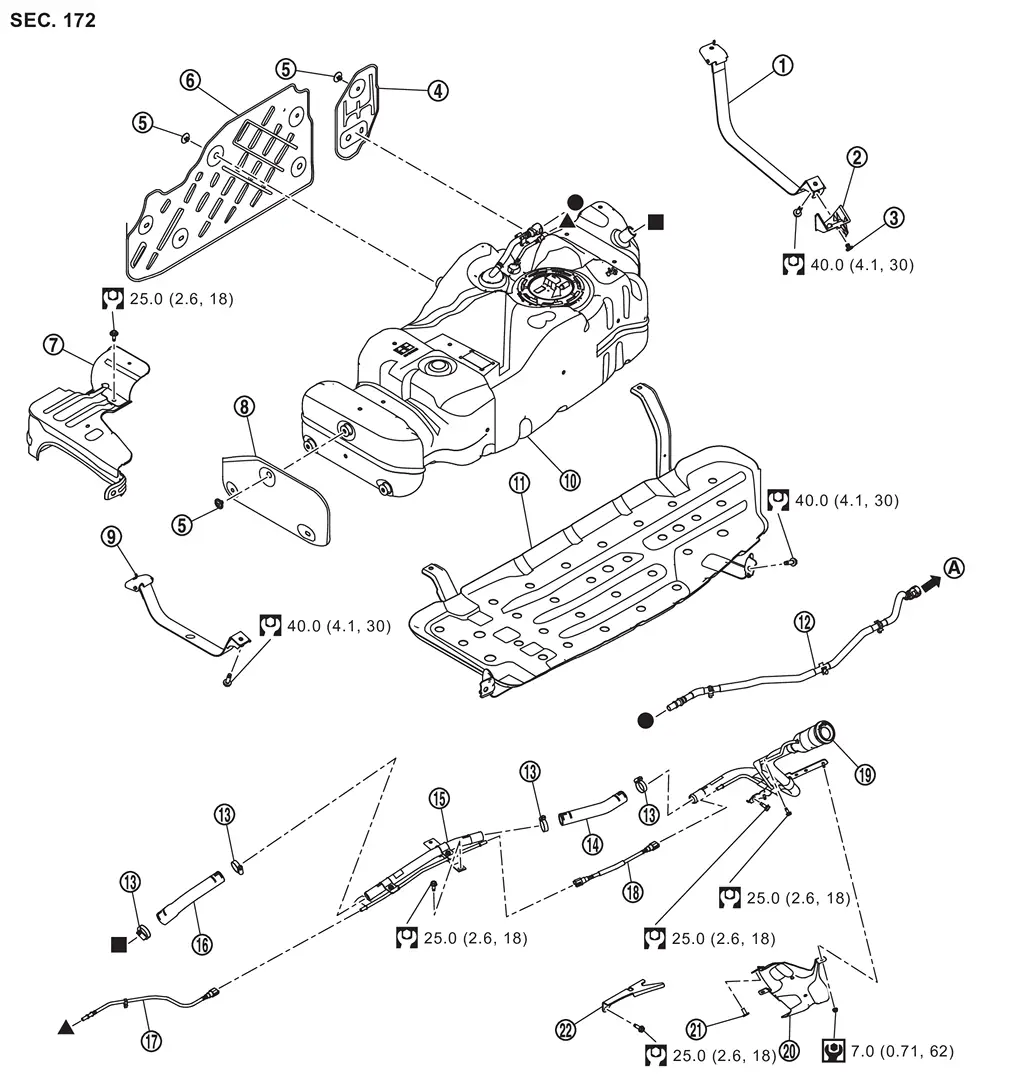

	Fuel tank mounting band (Rear)	Fuel tank mounting band cover	Clip 1
	Fuel tank side protector 1	Clip 2	Fuel tank side protector 2
	Fuel tank upper protector	Fuel tank front protector	Fuel tank mounting band (Front)
	Fuel tank	Fuel tank protector	Vent tube
	Clamp	Fuel filler hose 1	Fuel filler tube 2
	Fuel filler hose 2	EVAP tube 2	EVAP tube 1
	Fuel filler tube 1	Fuel filler tube protector 1	Clip 3
	Fuel filler tube protector 2
	To EVAP canister. Refer to EVAP CANISTER : Exploded View.
	: N·m (kg-m, ft-lb)
	: N·m (kg-m, in-lb)
, , : Indicates that the part is connected at points with same symbol in actual vehicle.

Fuel Tank

...

FUEL TANK : Removal & Installation

WARNING: REMOVAL WARNING: Be sure to read “General Precautions” when working on the fuel system. Refer to GENERAL PRECAUTION : Precautions. Perform steps 1 to 7 of “REMOVAL” in “ FUEL LEVEL ...
