Nissan Armada 2025-2026 Service and Repair Manual: Fusible Insulator Applying Part
Apply the fusible insulator (melsheet) to the floor upper surface and dashboard panel interior side to block noise, vibration, and exhaust gas heat.
Unit: mm (in)

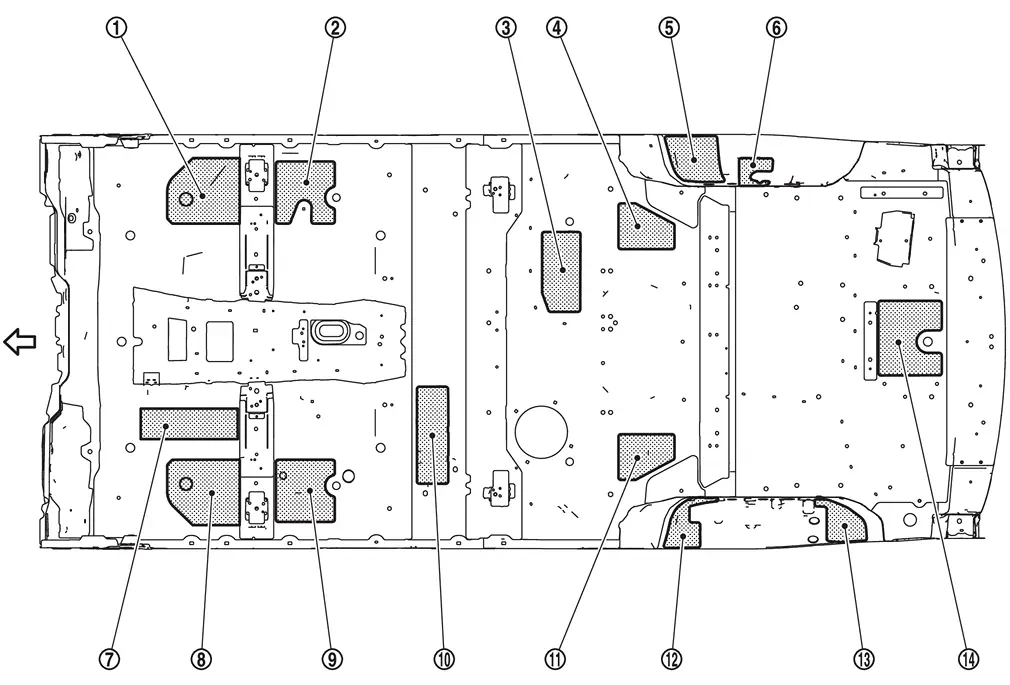

 | T=4.0 (0.157) |  | T=3.0 (0.118) |  | T=4.0 (0.157) |
 | T=4.0 (0.157) |  | T=3.0 (0.118) |  | T=3.0 (0.118) |
 | T=4.0 (0.157) |  | T=4.0 (0.157) |  | T=3.0 (0.118) |
 | T=4.0 (0.157) |  | T=4.0 (0.157) |  | T=3.0 (0.118) |
 | T=3.0 (0.118) |  | T=3.0 (0.118) | ||
 : Fusible insulator applying part | |||||

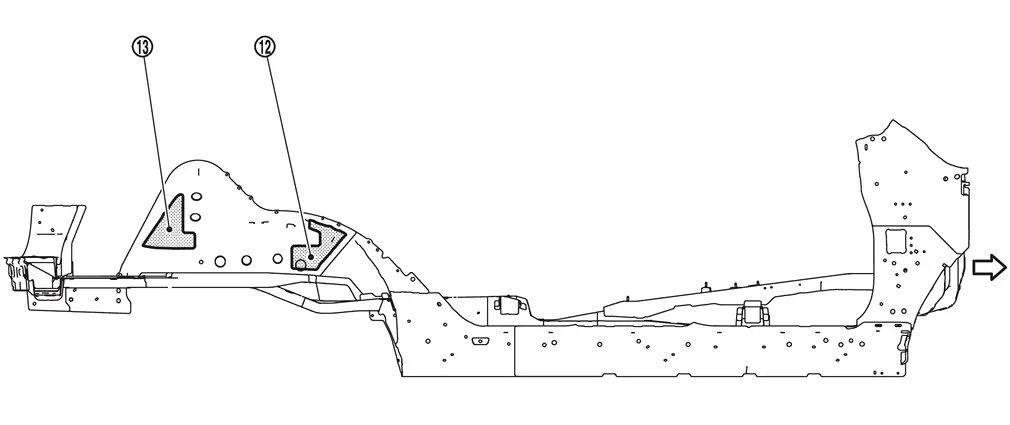

: Vehicle frontLEFT SIDE VIEW
Unit: mm (in)
| T=3.0 (0.118) | | T=3.0 (0.118) | ||
: Fusible insulator applying part | |||||

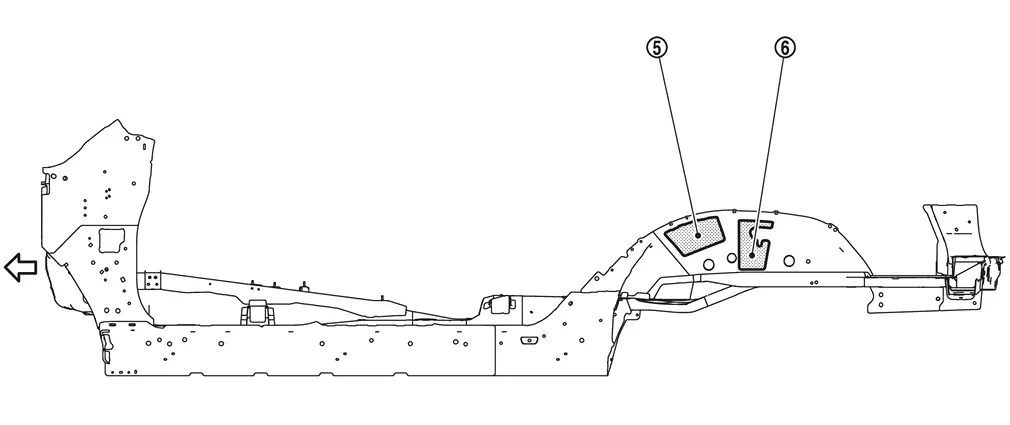

RIGHT SIDE VIEW
Unit: mm (in)
| T=3.0 (0.118) | | T=3.0 (0.118) | ||
: Fusible insulator applying part | |||||

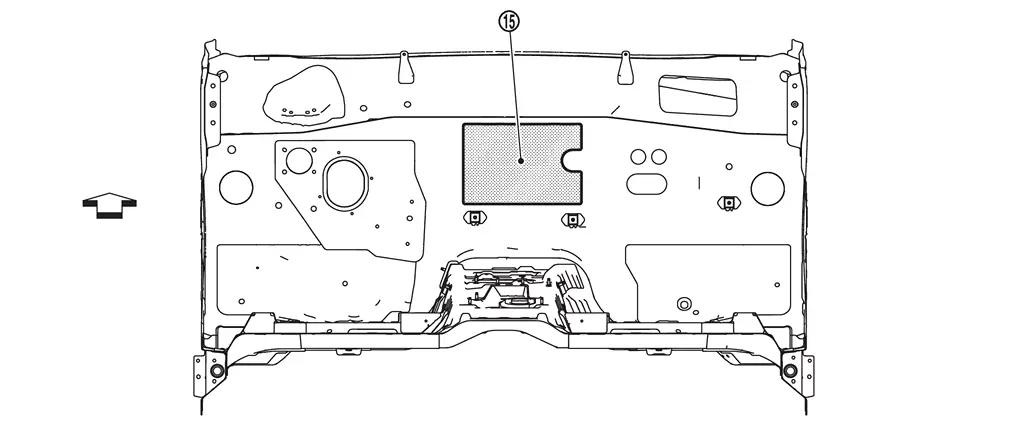

DASH PANEL
Unit: mm (in)
 | T=3.5 (0.138) | ||||
: Fusible insulator applying part | |||||
