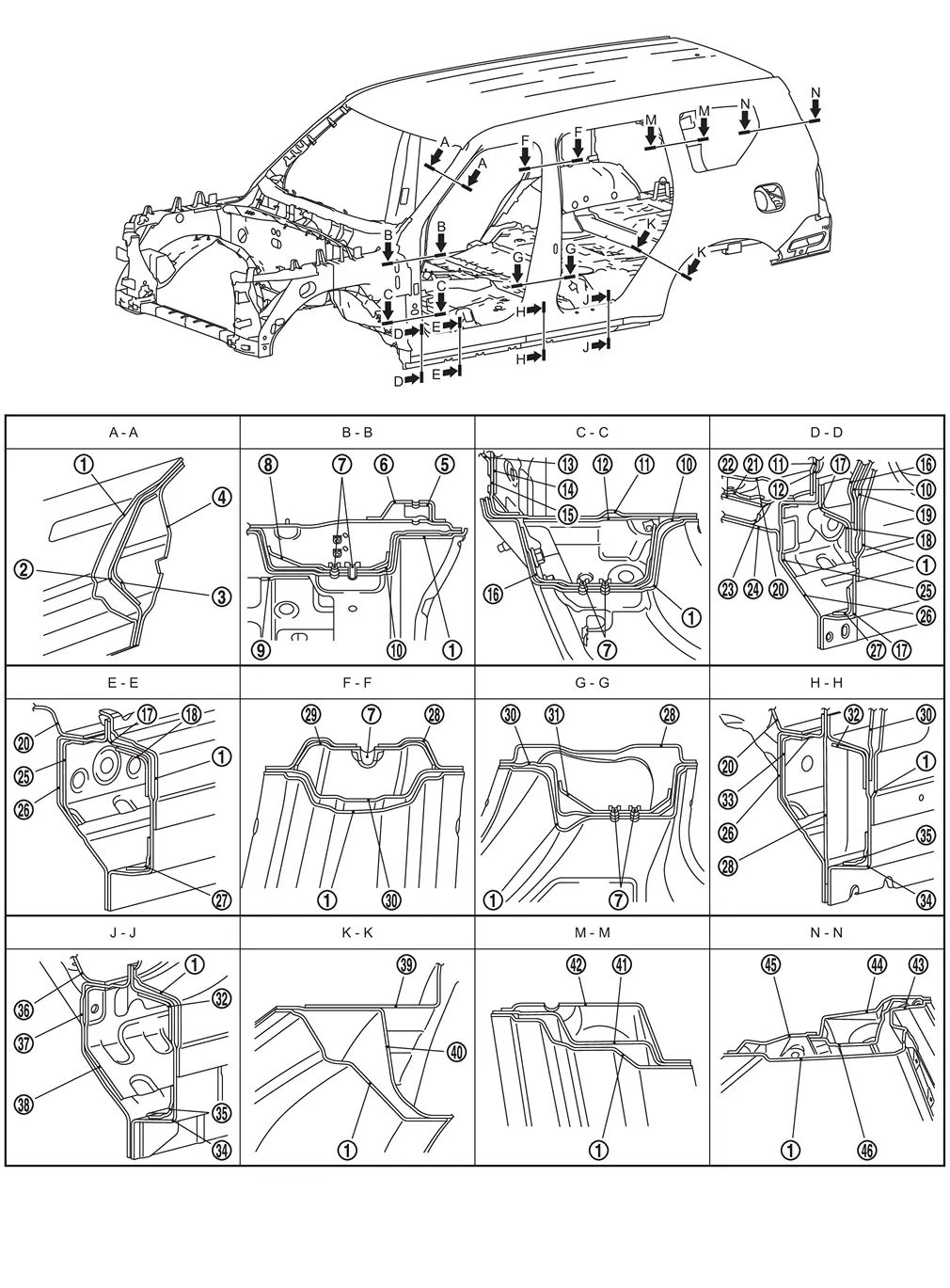

Nissan Armada 2025-2026 Service and Repair Manual: Body Construction
 | Outer side body |  | Outer front pillar reinforcement |  | Upper front pillar reinforcement |
 | Upper inner front pillar |  | Side dash reinforcement (Upper) |  | Upper side dash |
 | Weld nut |  | Upper hinge plate |  | Hoodledge reinforcement |
 | Upper front pillar hinge brace |  | Side dash |  | Side dash reinforcement (Lower) |
 | Lower dash bracket |  | Lower dash reinforcement |  | Lower dash |
 | Lower front pillar reinforcement |  | Outer sill reinforcement (Outer front) |  | Outer sill reinforcement (Upper front) |
 | Outer front sill reinforcement |  | Front floor |  | Inner gusset reinforcement |
 | 2nd body member mounting |  | Outer gusset reinforcement |  | 2nd body bracket mounting |
 | Inner sill reinforcement (Front) |  | Inner sill |  | Outer sill reinforcement (Lower front) |
 | Inner center pillar |  | Inner center pillar reinforcement |  | Center pillar hinge brace |
 | Lower hinge plate |  | Outer sill reinforcement (Upper rear) |  | Inner sill reinforcement (Rear) |
 | Outer sill reinforcement (Outer rear) |  | Outer sill reinforcement (Lower rear) |  | Rear floor front |
 | Inner sill extension |  | Side step bracket |  | Sill closing plate |
 | Outer rear wheelhouse |  | Inner side panel reinforcement |  | Inner rear pillar |
 | Back pillar main |  | Inner back pillar |  | Lower inner rear pillar |
 | Back pillar reinforcement |
