Nissan Armada 2025-2026 Service and Repair Manual: How to Handle Battery
CAUTION:

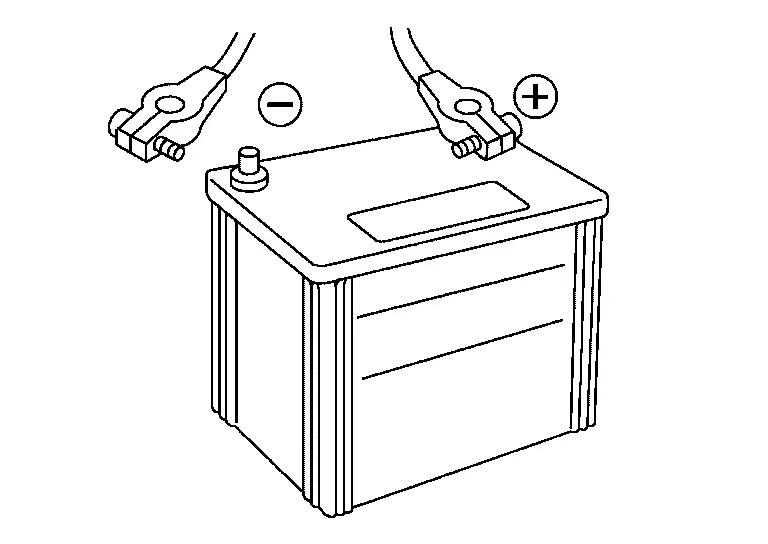

After connecting battery cables, ensure that they are tightly clamped to battery terminals for good contact.
WHERE TO CONNECT JUMPER CABLE WHEN THE 12V BATTERY IS DISCHARGED
CAUTION:
If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt booster battery.

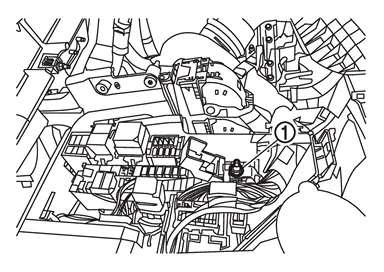

: Positive terminal for connecting jumper cable
(Jumper cable negative terminal is used for connecting to the engine assembly.)
METHODS OF PREVENTING OVER-DISCHARGE
The following precautions must be taken to prevent over-discharging a battery.

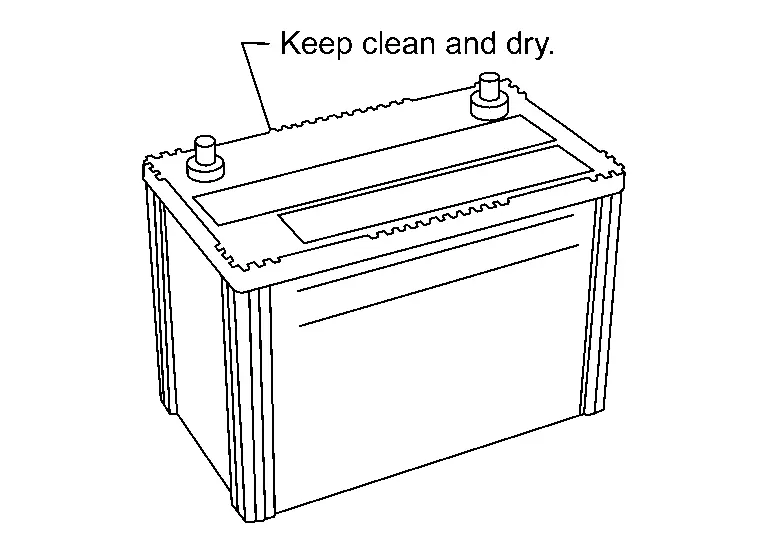

The battery surface (particularly its top) should always be kept clean and dry.
The terminal connections should be clean and tight.
When the vehicle is not going to be used over a long period of time, disconnect the battery cable from the negative terminal. (If the vehicle has an extended storage fuse switch, turn it off.)
Work Flow
BATTERY DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI
To diagnose and confirm the condition of the battery, use the following special service tools:
EXP-800 NI Battery and electrical diagnostic analyzer
GR ...
