Nissan Armada 2025-2026 Service and Repair Manual: Inspection
WARNING:
INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.
| Spark plug (Standard type) | : Refer to Spark Plug. |
CAUTION:

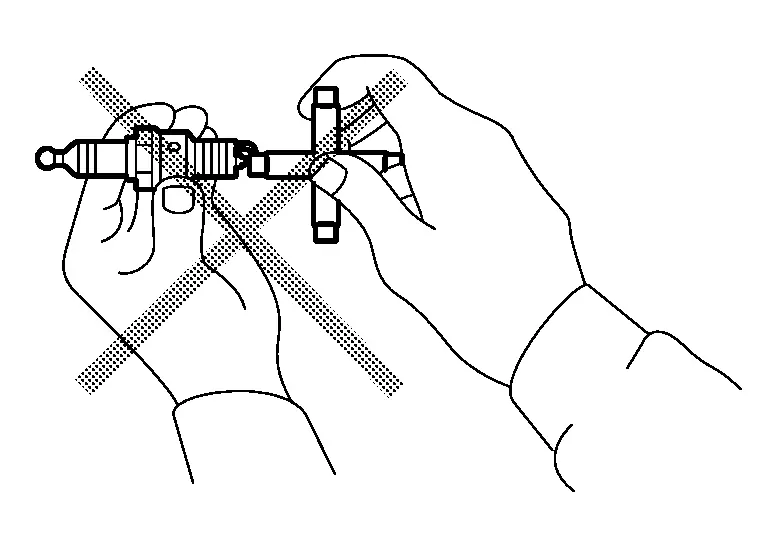

Never drop or shock spark plug.

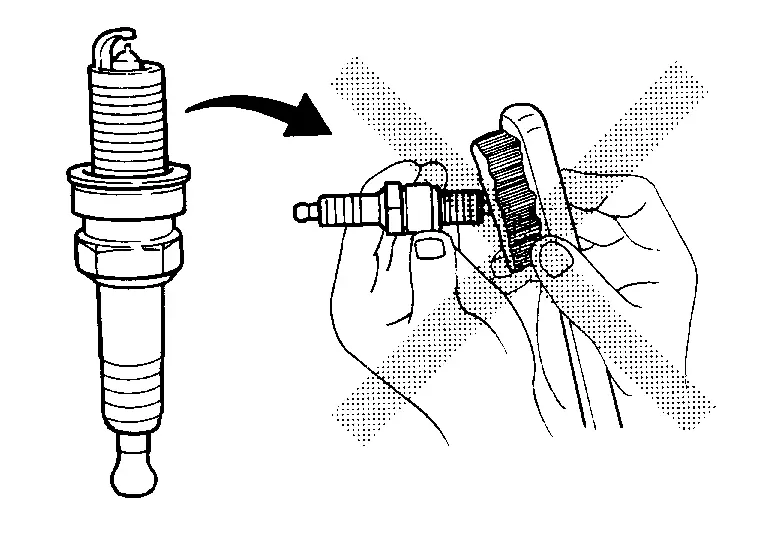

Never use a wire brush for cleaning.
If plug tip is covered with carbon, use spark plug cleaner to clean.
Cleaner air pressure : Less than 588 kPa (6 kg/cm2, 85 psi) Cleaning time : Less than 20 seconds Check and adjustment of plug gap is not required between change intervals.
Removal & Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove ignition coil. Refer to Removal and Installation.
Remove spark plug with a spark plug wrench (commercial service tool).
...
