Nissan Armada 2025-2026 Service and Repair Manual: Inspection
Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

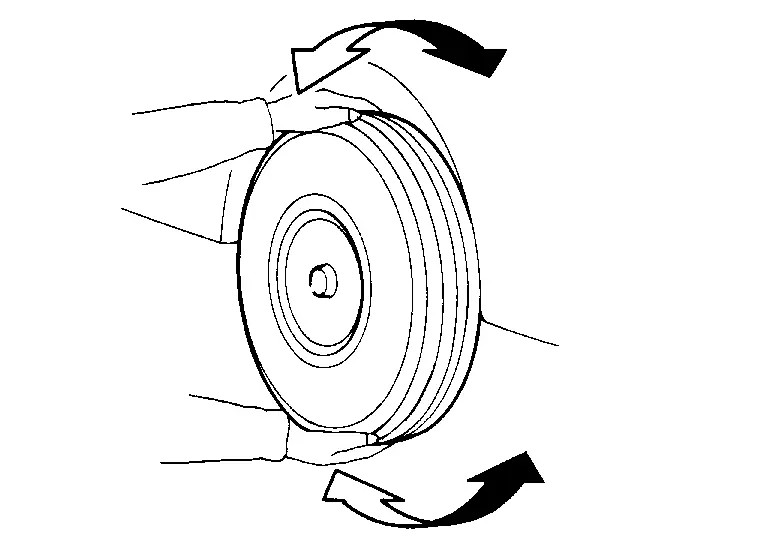

Shake each wheel to check for excessive play.
Check wheel bearings for smooth operation.
Check axle and suspension nuts and bolts for looseness.

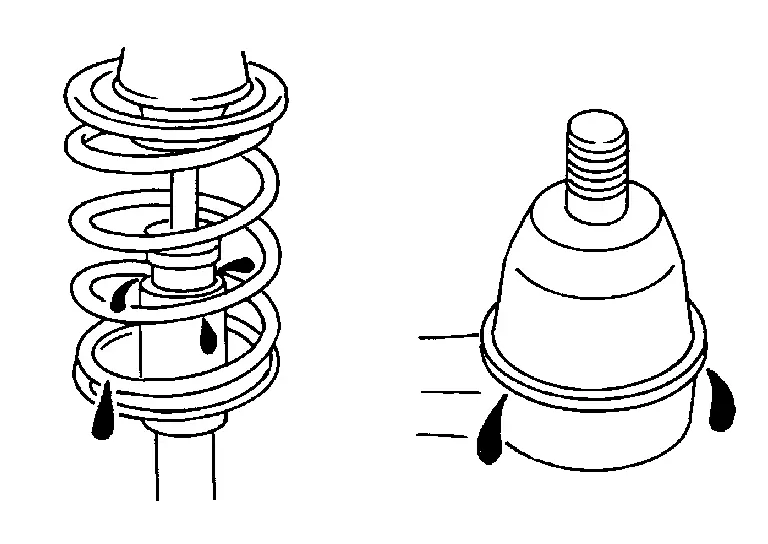

Check strut (shock absorber) for oil leakage or other damage.
Check suspension ball joint for grease leakage and ball joint dust cover for cracks or other damage.
