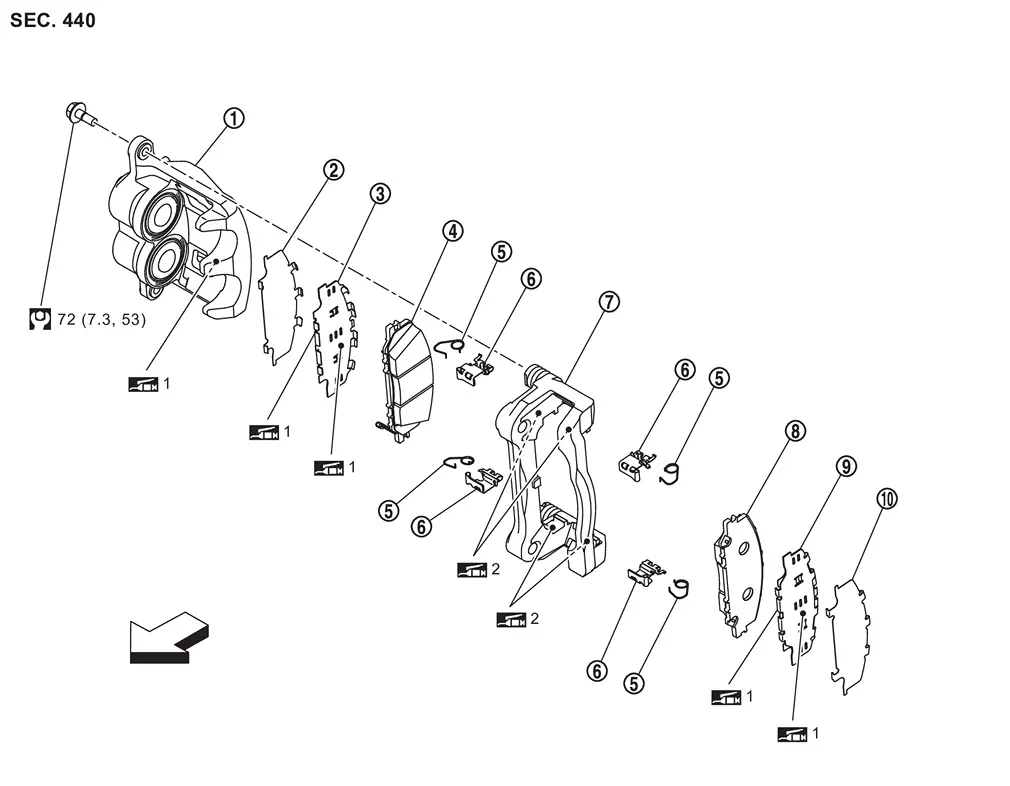

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Cylinder body |  | Inner shim cover |  | Inner shim |
 | Inner pad (with pad wear sensor) |  | Return spring |  | Pad retainer |
 | Torque member |  | Outer pad |  | Outer shim |
 | Outer shim cover | ||||
 : Vehicle front | |||||
 1: Apply MOLYKOTE® AS880N or siliconebased grease. | |||||
| 2: Apply MOLYKOTE® 7439 or equivalent. | |||||
 : N·m (kg-m, ft-lb) | |||||
Molykote is a registered trademark of Dow Corning Corporation.
Brake Pad
...
Removal and Installation
WARNING:
REMOVAL
WARNING:
CAUTION:
Never depress the brake pedal while removing the brake pads because the piston may pop out.
If the brake fluid or grease adheres to the brake caliper assembly and di ...
