Nissan Armada 2025-2026 Service and Repair Manual: Inspection and Adjustment
INSPECTION BEFORE INSTALLATION

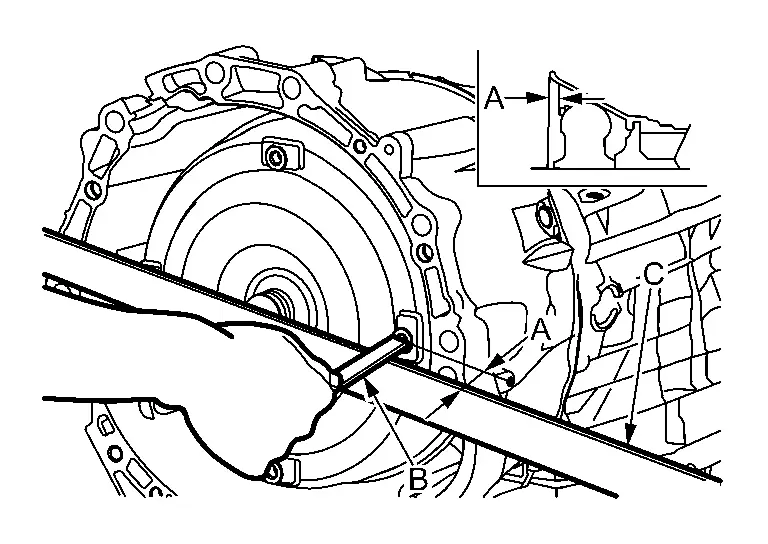

Be sure to check dimension (A) to ensure it is within the reference value limit.
| B | : Scale |
| C | : Straightedge |
| Dimension (A) | : Refer to Torque Converter. |
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of ATF.
Check A/T position. Refer to Inspection.
ADJUSTMENT AFTER INSTALLATION
Adjust A/T fluid level. Refer to Adjustment.
When replaced A/T assembly, perform "ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY". Refer to Description.
Removal and Installation
WARNING:
REMOVAL
CAUTION:
When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from the A/T assembly.
Be careful not to damage sensor edge.
When replacing A/T ...
