Nissan Armada 2025-2026 Service and Repair Manual: Inspection and Adjustment
WARNING:
INSPECTION
Appearance
Refer to Removal and Installation

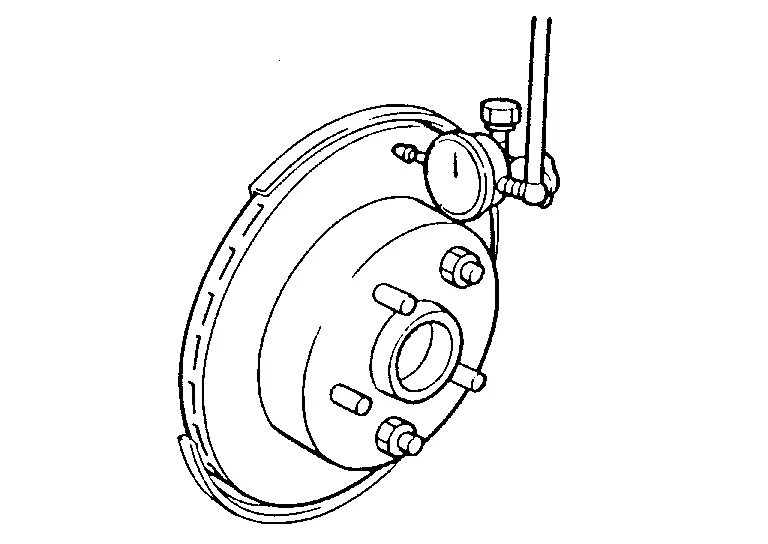

Runout
Check the wheel bearing axial end play.
Refer to Inspection
| Runout (with it attached to the vehicle) | : Refer to Rear Disc Brake. |
CAUTION:
Refer to Removal and Installation
| Wear thickness | : Refer to Rear Disc Brake. |
Thickness
Refer to Removal and Installation
| Wear thickness | : Refer to Rear Disc Brake. |
ADJUSTMENT
CAUTION:
Drive vehicle on straight, flat road.
Drive without depressing brake for a few minutes to cool the brake.
Repeat steps 1 to 3 until pad and disc rotor are securely fitted.
Disc Rotor
...
Rear Disc Brake
Unit: mm (in)
Item Limit Brake pad Wear thickness 1.5 (0.059) Disc rotor Wear thickness 18.5 (0.728) Thickness variation (measured at 8 positions)* 0.009 (0.0004) Runout (with it attached t ...
