Nissan Armada 2025-2026 Service and Repair Manual: Location of Plastic Parts

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair — Repair Information / Service Data and Specifications (sds) / Location of Plastic Parts

EXTERIOR

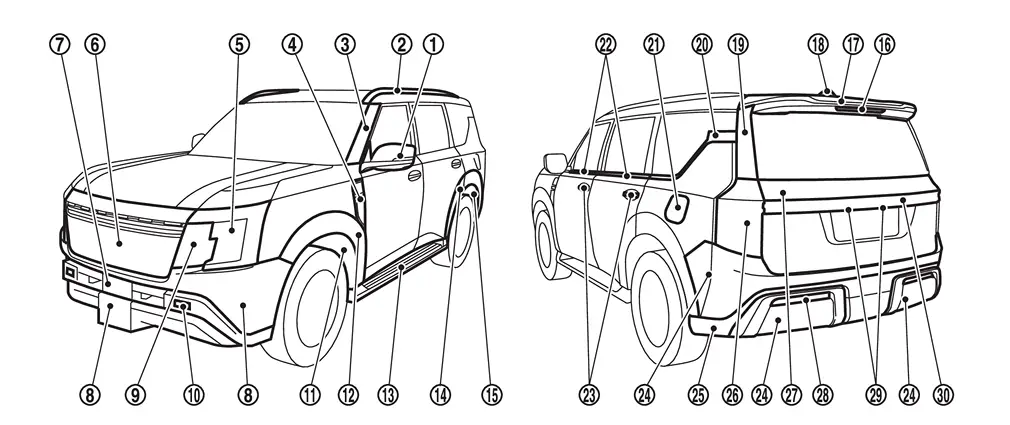

FOR PRO-4X GRADE

Component Material Component Material
Door mirror cover ABS Rear spoiler Upper PC + ABS
Door mirror finisher ABS Lower ASA
Door mirror housing assembly ABS Roof antenna Without ProPILOT Assist 2.1 models Inner cover PC + ABS
Door mirror base cover ABS Pad EPDM
Door mirror base gasket PE Antenna cover ASA, PC / ABS
Door mirror base assembly ABS With ProPILOT Assist 2.1 models Inner cover PC + ASA
Side turn signal lamp Lens PMMA Pad TPE
Housing ABS Mold base PBT
Inner lens PMMA Antenna cover PC + ABS
With roof rail models Roof rail PC + PET Rear side spoiler ABS
Roof rail cover PC + ABS Side window glass molding Stainless
Without roof rail models Roof side molding Molding Stainless + PVC Side window glass finisher AES
End cap PC + ASA Fuel filler lid PPE, PA
Front pillar finisher PC, ABS Fuel filler base assembly PP + Glass fiber
Front fender duct Base ABS Front and rear door outside molding Molding Stainless + TPO
Molding ABS End cap PBT
Front combination lamp Lens PC Front and rear door outside handle Cover PC + PET
Housing PP Body PP + Glassfiber
Inner lens PC Escutcheon cover PP + Glassfiber
Inner Panel PC Front gasket PP
Front grille Grille ABS Rear gasket TPO
Molding ABS Front and rear door outside handle bracket PA + Glassfiber
Front bumper finisher PP + EPM Rear bumper fascia PP + EPM
Front bumper fascia PP + EPM Rear bumper finisher upper PP + EPM
License plate bracket PP + EPM Rear bumper finisher lower PP
Front bumper side finisher ABS Rear bumper molding PP + EPM
Front fog lamp Lens PC Rear combination lamp Lens PMMA
Housing PC + PBT Housing ASA
Inner lens PMMA Inner lens PMMA
Fender protector PP Rear combination lamp cover ASA
Front fillet molding (If equipped) PP + EPM Back door finisher upper Outer ABS
Side step Cover PP + EPM Inner ASA
Reinforcement Aluminum Rear reflex reflector Lens PMMA
Rear fillet molding front (If equipped) PP + EPM Housing PC + ABS
Rear fillet molding rear (If equipped) PP + EPM License plate lamp Lens PMMA
Rear wheelhouse protector PET + PP Housing ABS + PC
High-mounted stop lamp Lens PMMA Back door finisher Outer ABS
Housing ABS Inner ASA

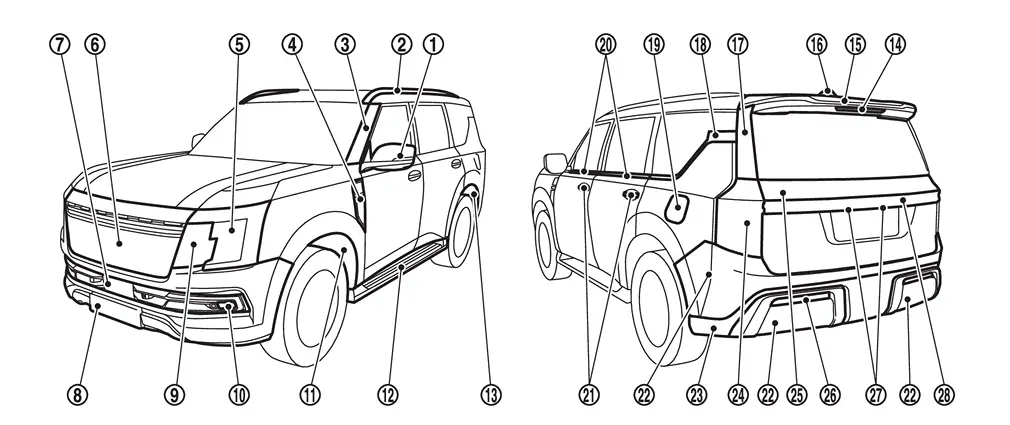

EXCEPT FOR PRO-4X GRADE

Component Material Component Material
Door mirror cover ABS Roof antenna Without ProPILOT Assist 2.1 models Inner cover PC + ABS
Door mirror finisher ABS Pad EPDM
Door mirror housing assembly ABS Antenna cover ASA, PC / ABS
Door mirror base cover ABS With ProPILOT Assist 2.1 models Inner cover PC + ASA
Door mirror base gasket PE Pad TPE
Door mirror base assembly ABS Mold base PBT
Side turn signal lamp Lens PMMA Antenna cover PC + ABS
Housing ABS Rear side spoiler ABS
Inner lens PMMA Side window glass molding Stainless
With roof rail models Roof rail PC + PET Side window glass finisher AES
Roof rail cover PC + ABS Fuel filler lid PPE, PA
Without roof rail models Roof side molding Molding Stainless + PVC Fuel filler base assembly PP + Glass fiber
End cap PC + ASA Front and rear door outside molding Molding Stainless + TPO
Front pillar finisher PC, ABS End cap PBT
Front fender duct Base ABS Front and rear door outside handle Cover PC + PET
Molding ABS Body PP + Glassfiber
Front combination lamp Lens PC Escutcheon cover PP + Glassfiber
Housing PP Front gasket PP
Inner lens PC Rear gasket TPO
Inner Panel PC Front and rear door outside handle bracket PA + Glassfiber
Front grille Grille ABS Rear bumper fascia PP + EPM
Molding ABS Rear bumper finisher upper PP + EPM
Front bumper grille PP + EPM Rear bumper finisher lower PP
Front bumper side grille Grille PP + EPM Rear bumper molding PP + EPM
Molding ABS Rear combination lamp Lens PMMA
Front bumper fascia PP + EPM Housing ASA
License plate bracket PP + EPM Inner lens PMMA
Front bumper side finisher ABS Rear combination lamp cover ASA
Front fog lamp Lens PC Tail lamp Lens PMMA
Housing PC, ABS Housing ASA
Inner lens PC Inner lens PMMA
Fender protector PP Rear reflex reflector Lens PMMA
Side step Cover PP + EPM Housing PC + ABS
Reinforcement Aluminum License plate lamp Lens PMMA
Rear wheelhouse protector PET + PP Housing ABS + PC
High-mounted stop lamp Lens PMMA Back door finisher Outer ABS
Housing ABS Inner ASA
Rear spoiler Upper PC + ABS — — —
Lower ASA

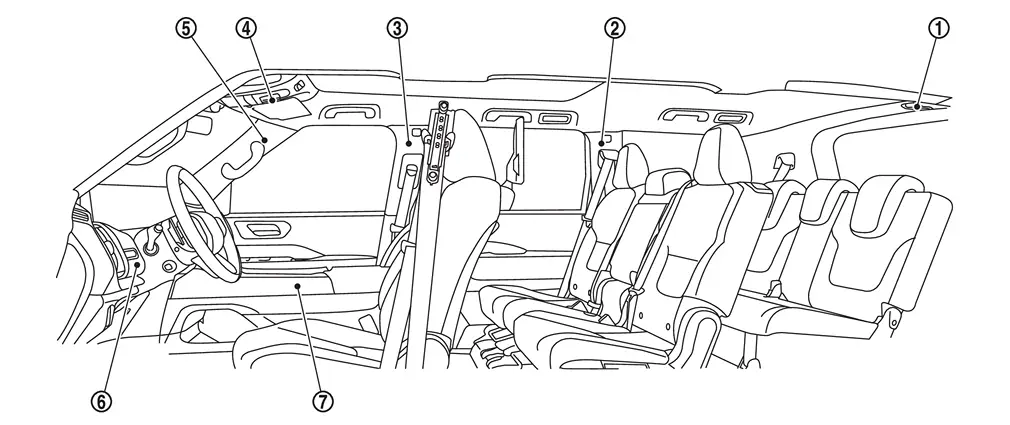

INTERIOR

Component Material Component Material
Luggage room lamp Lens PC Instrument pad A Core PC + ABS
Housing PA + Glassfiber Skin PVC
Inner lens PC Switch bracket PC + ABS
Back pillar garnish PP Instrument pad B Core PC + ABS
Luggage side lower finisher Base PP Skin PVC
Pad PP + PET Instrument lower panel LH PC + ABS
Rear pillar finisher Core PP Center instrument lower panel Core PC + ABS
Skin PET, PUR Skin PVC
Center pillar upper garnish Core PP Instrument pad D Core PC + ABS
Skin PET, PUR Skin PVC
Center pillar lower garnish PP Glove box assembly Inner lid PC + ABS
Map lamp assembly Console PP Outer lid PC + ABS
Lid PC + ASA Skin PVC
Lens PC Body PC + ABS
Cover PP Instrument lower cover PP
Map lamp bracket PC + ABS Front center console switch finisher assembly Molding PC + ABS
Front pillar garnish Core PP Center ventilator Case ABS
Skin PET, PUR Louver ABS, PBT + PET + Glassfiber
Dash side finisher PP Knob POM
Front speaker grille PP + EPM Escutcheon ABS
Display unit cover PP + EPM A/C finisher PC
Instrument panel assembly Core PP + Glassfiber Front center console bracket PP + Glassfiber
Skin PVC Instrument lower cover LH & RH PP
Instrument mask PP Front center console side finisher upper Core PC + ABS
Display unit finisher LH PC + ABS Skin PVC
Display unit finisher RH PC + ABS Front center console side finisher lower PP + EPM
Cluster lid A PP Front center console cup holder assembly Finisher PC + ABS
Steering column cover upper & lower PP + EPM Base PC + ABS
Instrument finisher A Finisher PC + ABS Tray PA + Glassfiber
Side ventilator Case ABS Cup holder PP
Louver ABS, PBT + PET + Glassfiber Console pocket PP
Knob POM Sub tray ABS
Escutcheon ABS Front center console body assembly Body PP + Glassfiber
Instrument finisher B Finisher PC + ABS Panel PP + EPM
Side ventilator Case ABS Lid skin PVC
Louver ABS, PBT + PET + Glassfiber Lid pad PUR
Knob POM Lid core ABS
Escutcheon ABS Front center console rear finisher assembly Upper PC + ABS
Instrument finisher C PP + EPM Lower PP + EPM
Precautions for Plastics
Abbreviation Material name Heat resisting temperature °C (°F) Resistance to gasoline and solvents Other cautions PE Polyethylene 60 (140) Gasoline and most solvents are harmless if applied ...
