Nissan Armada 2025-2026 Service and Repair Manual: Main Bearing
DESCRIPTION
| Selection points | Selection parts | Selection items | Selection methods |
|---|---|---|---|
| Between cylinder block and crankshaft | Main bearing | Main bearing grade (bearing thickness) | Determined by match of cylinder block bearing housing grade (inner diameter of housing) and crankshaft journal grade (outer diameter of journal) |
| Between crankshaft and connecting rod | Connecting rod bearing | Connecting rod bearing grade (bearing thickness) | Combining service grades for connecting rod big end diameter and crankshaft pin outer diameter determine connecting rod bearing selection. |
| Between piston and connecting rod | — | — | — |
WHEN NEW CYLINDER BLOCK AND CRANKSHAFT ARE USED

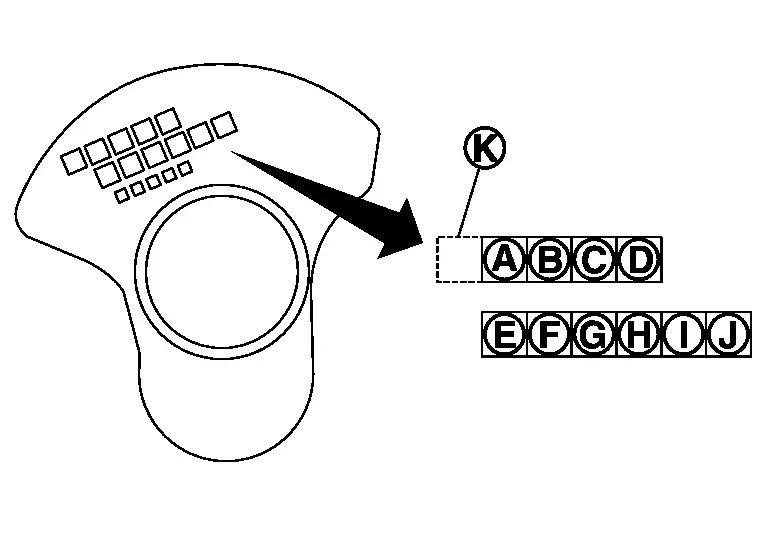

“MAIN BEARING SELECTION TABLE” rows correspond to bearing housing grade on rear side of cylinder block.
 | : Bearing housing grade No. 1 |
 | : Bearing housing grade No. 2 |
 | : Bearing housing grade No. 3 |
 | : Bearing housing grade No. 4 |
 | : Engine front |
“MAIN BEARING SELECTION TABLE” columns correspond to journal diameter grade on front side of crankshaft.
| : Journal diameter grade No. 1 |
| : Journal diameter grade No. 2 |
| : Journal diameter grade No. 3 |
| : Journal diameter grade No. 4 |
 | : Pin diameter grade No. 1 |
 | : Pin diameter grade No. 2 |
 | : Pin diameter grade No. 3 |
 | : Pin diameter grade No. 4 |
 | : Pin diameter grade No. 5 |
 | : Pin diameter grade No. 6 |
 | : Identification code |
Select main bearing grade at the point where selected row and column meet in “MAIN BEARING SELECTION TABLE”.
Apply sign at crossing in above step 3 to “MAIN BEARING GRADE TABLE”.
NOTE:
“MAIN BEARING GRADE TABLE” applies to all journals.
Service parts are available as a set of both upper and lower.
WHEN CYLINDER BLOCK AND CRANKSHAFT ARE REUSED
Measure cylinder block main bearing housing inner diameter and crankshaft main journal diameter. Refer to Inspection.
Correspond the measured dimension in “Cylinder block main bearing housing inner diameter” row of “MAIN BEARING SELECTION TABLE”.
Correspond the measured dimension in “Crankshaft main journal diameter” column of “MAIN BEARING SELECTION TABLE”.
Follow step 3 and later in “When New Cylinder Block and Crankshaft are Used”.

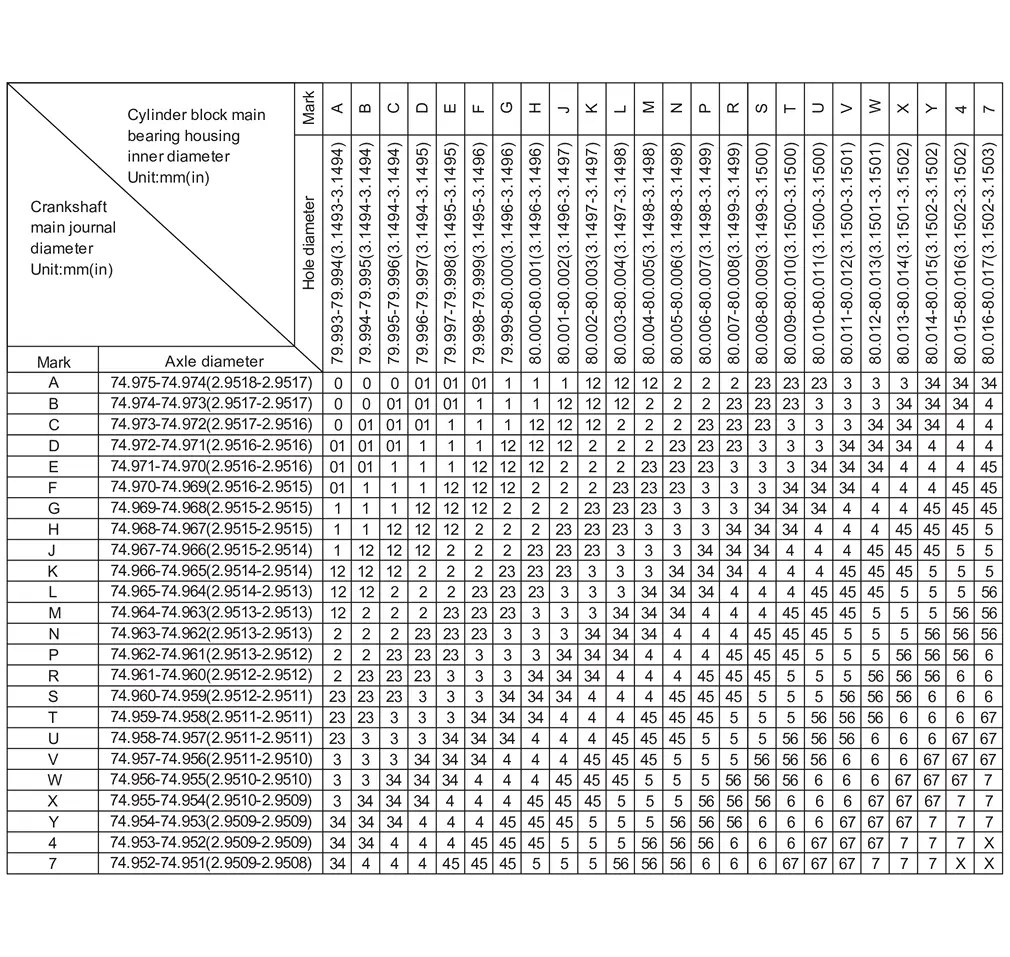

MAIN BEARING SELECTION TABLE
MAIN BEARING GRADE TABLE (ALL JOURNALS)
| Main bearing grade table (All journals) | : Refer to Main Bearing. |
UNDERSIZE BEARING USAGE GUIDE
When the specified main bearing oil clearance is not obtained with standard size main bearings, use underside (US) bearing.
When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and grind main journal so that the main bearing oil clearance satisfies the standard.
CAUTION:
In grinding crankshaft main journal to use undersize bearings, keep the fillet R
[1.5 - 1.7 mm (0.059 - 0.067 in)].
| Bearing undersize table | : Refer to Main Bearing. |
Connecting Rod Bearing
DESCRIPTION
Selection points Selection parts Selection items Selection methods Between cylinder block and crankshaft Main bearing Main bearing grade
(bearing thickness) Determined by match of c ...
