Nissan Armada 2025-2026 Service and Repair Manual: Model Variation
FOR USA
| Destination | Body | Engine | Axle | Handle | Transmission | Grade | Model |
|---|---|---|---|---|---|---|---|
| USA | SUV | VR35DDTT | 2WD | LHD | 9A/T | SV | TLWALB2-ZU8 |
| SL | TLWALC2-ZU8 | ||||||
| Platinum | TLWALG2-ZU8 | ||||||
| SL | TLWALC2-ZU7 | ||||||
| Platinum | TLWALG2-ZU7 | ||||||
| Platinum Reserve | TLWALD2-ZU8 | ||||||
| TLWALD2-ZU7 | |||||||
| 4WD | SV | TLWNLB2-ZU8 | |||||
| SL | TLWNLC2-ZU8 | ||||||
| Platinum | TLWNLG2-ZU8 | ||||||
| SL | TLWNLC2-ZU7 | ||||||
| Platinum | TLWNLG2-ZU7 | ||||||
| PRO-4X | TLWNLE2-ZU8 | ||||||
| Platinum Reserve | TLWNLD2-ZU8 | ||||||
| TLWNLD2-ZU7 |
Model variation code (Prefix and suffix designations)
FOR CANADA
| Destination | Body | Engine | Axle | Handle | Transmission | Grade | Model |
|---|---|---|---|---|---|---|---|
| Canada | SUV | VR35DDTT | 4WD | LHD | 9A/T | SL | TLWNLC2-ZN8 |
| Platinum | TLWNLG2-ZN8 | ||||||
| SL | TLWNLC2-ZN7 | ||||||
| Platinum | TLWNLG2-ZN7 | ||||||
| PRO-4X | TLWNLE2-ZN8 | ||||||
| Platinum Reserve | TLWNLD2-ZN8 | ||||||
| TLWNLD2-ZN7 |

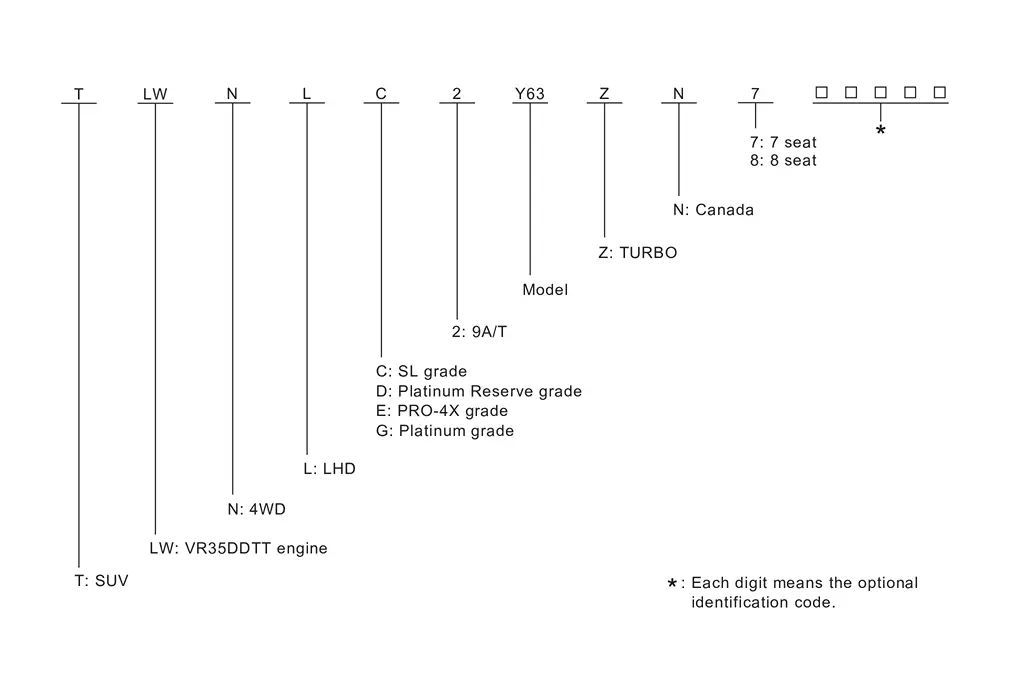

Model variation code (Prefix and suffix designations)
Information About Identification or Model Code
IDENTIFICATION NUMBER
Vehicle identification number plate Air conditioner specification label Emission control information label FMVSS certification label
(For USA )
CMVSS certification label
(For ...
