Nissan Armada 2025-2026 Service and Repair Manual: Information About Identification or Model Code

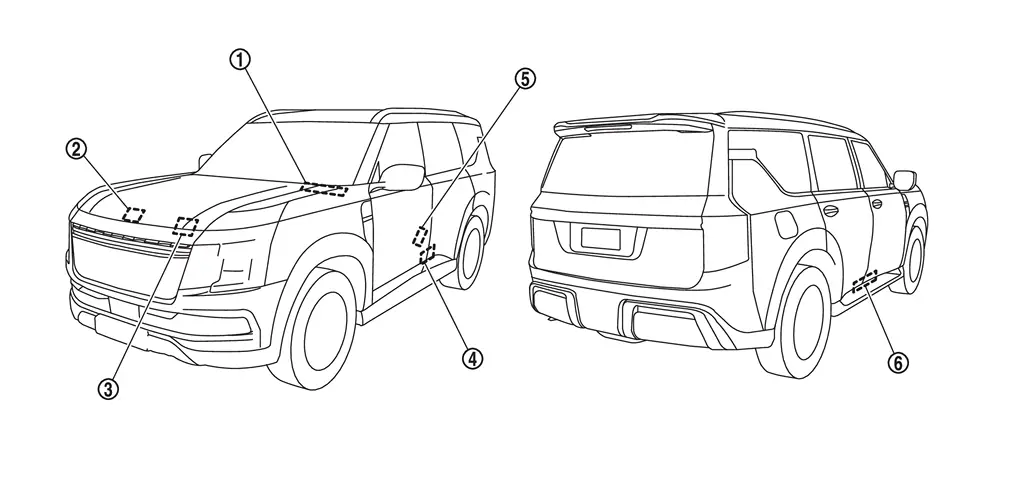

IDENTIFICATION NUMBER
 | Vehicle identification number plate |  | Air conditioner specification label |  | Emission control information label |
 |
|  | Tire placard |  | Vehicle identification number (Chassis number on the frame) |
VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

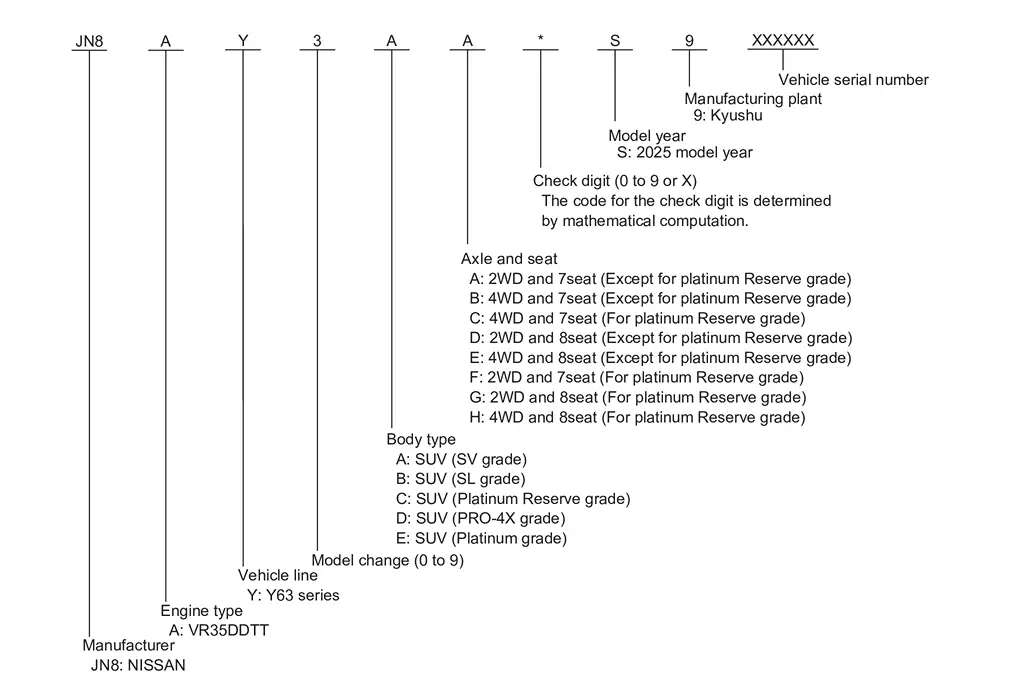

For USA

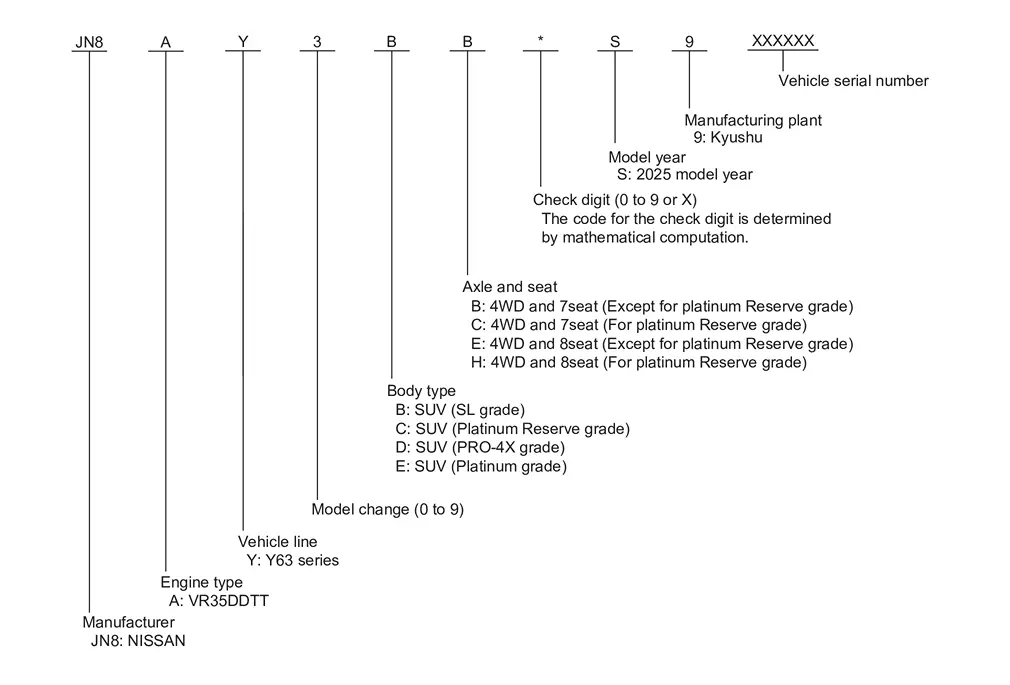

For Canada
CERTIFICATION LABEL

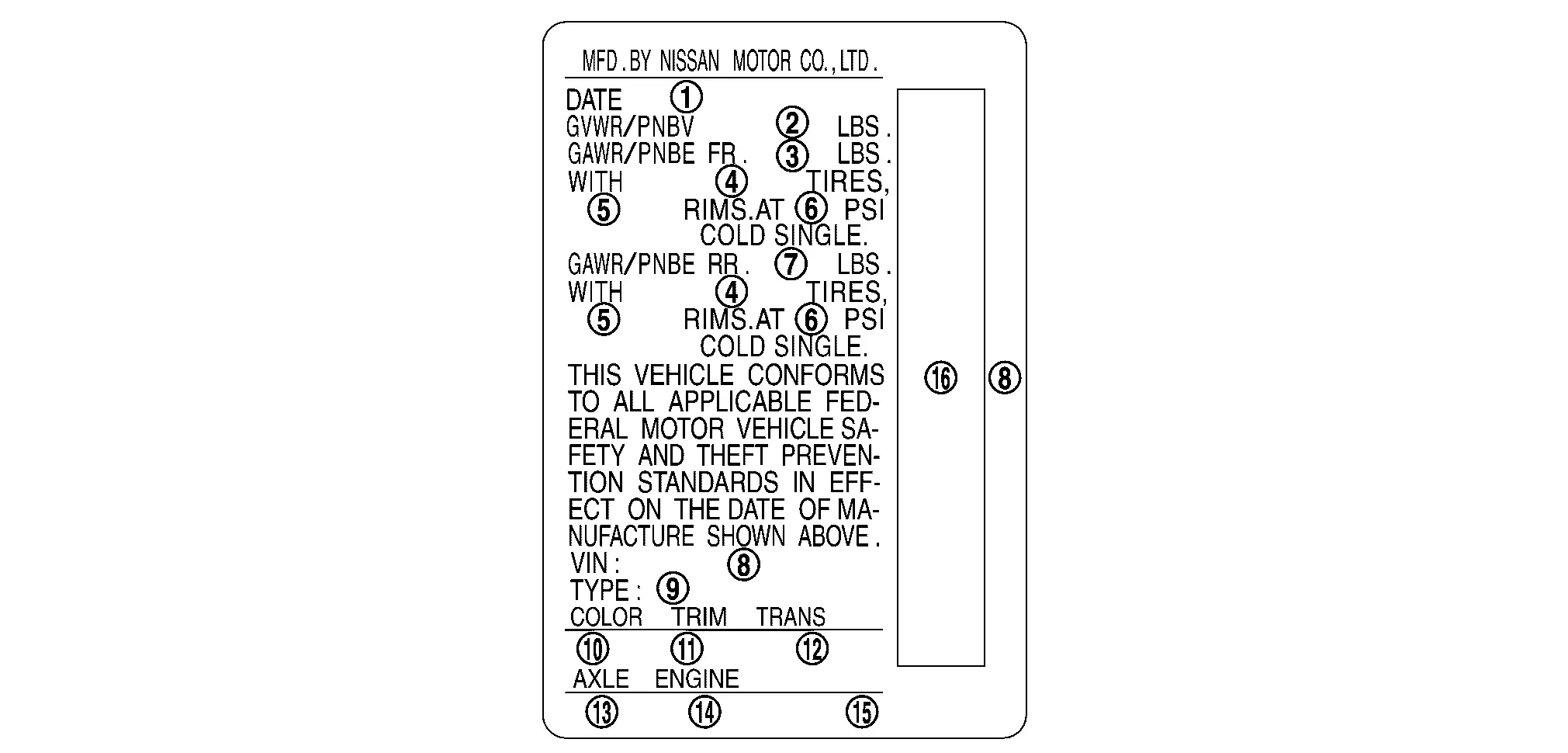

For USA
| MFR Month/Year | | Gross vehicle weight rating | | Gross axle weight rating (Front) |
| Tire size | | Wheel size | | Tire inflation pressure |
 | Gross axle weight rating (Rear) |  | Vehicle identification number |  | Verification model code |
 | Body color number |  | Trim color number |  | Transmission type |
 | Axle type |  | Engine type |  | Engine displacement |
 | VIN bar code |

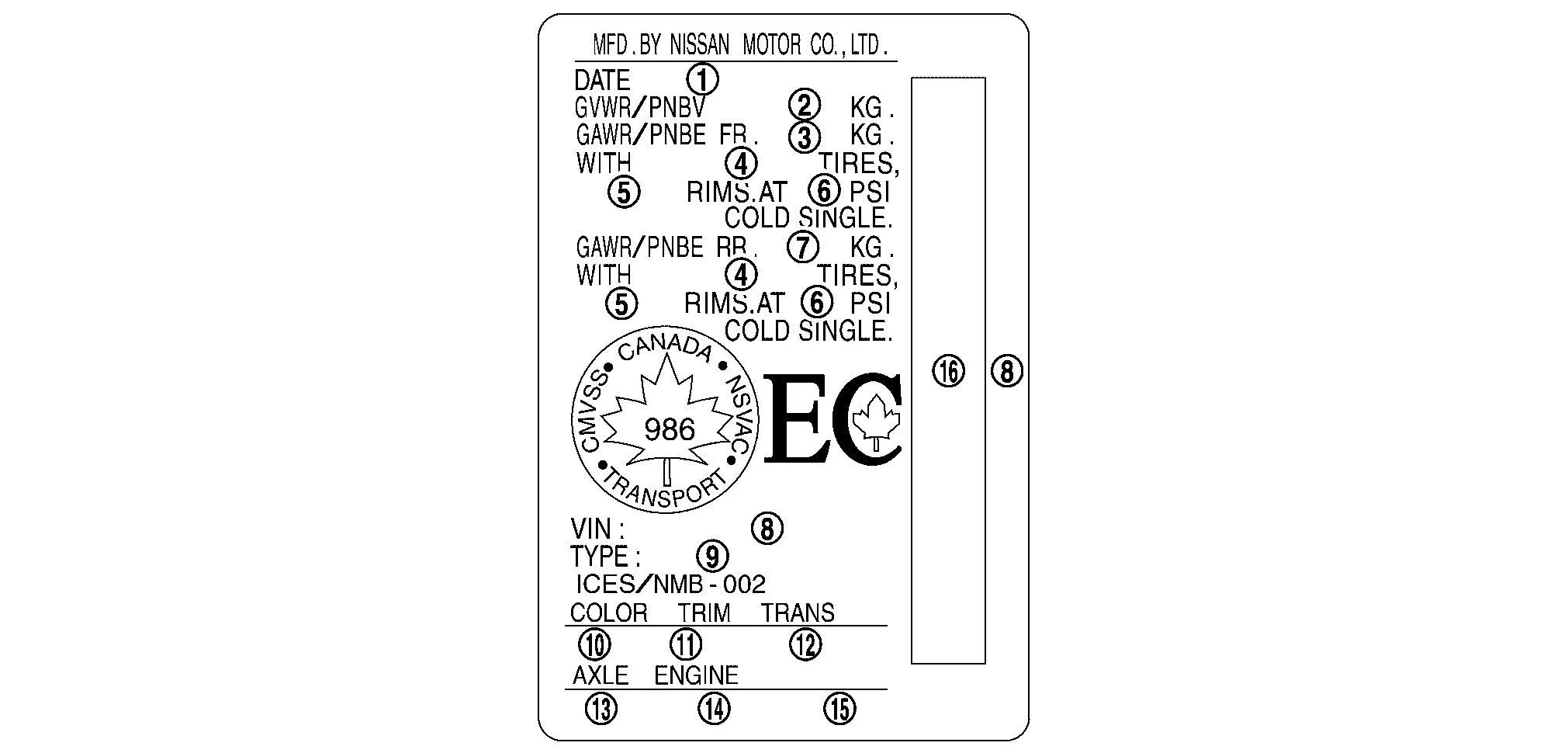

For Canada
| MFR Month/Year | | Gross vehicle weight rating | | Gross axle weight rating (Front) |
| Tire size | | Wheel size | | Tire inflation pressure |
| Gross axle weight rating (Rear) | | Vehicle identification number | | Verification model code |
| Body color number | | Trim color number | | Transmission type |
| Axle type | | Engine type | | Engine displacement |
| VIN bar code |

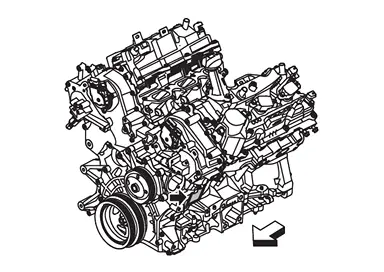

ENGINE SERIAL NUMBER (CYLINDER BLOCK)
 | : Vehicle front |

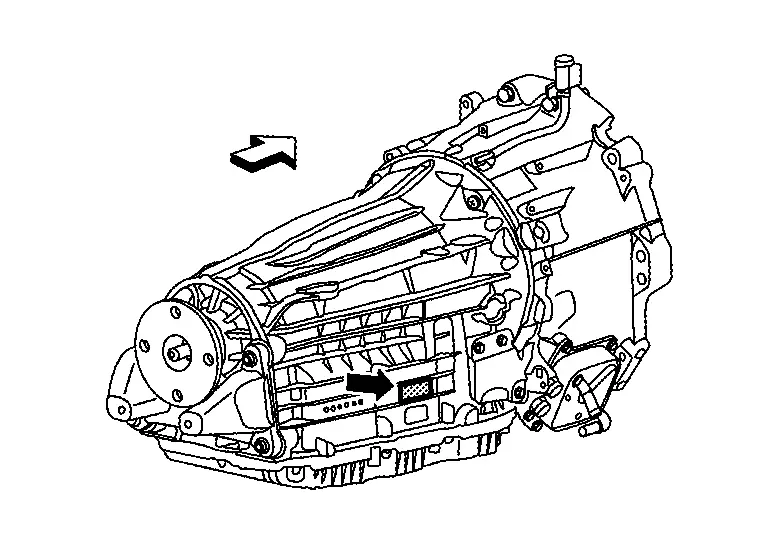

AUTOMATIC TRANSMISSION NUMBER
| : Vehicle front |
Model Variation
FOR USA
Destination Body Engine Axle Handle Transmission Grade Model USA SUV VR35DDTT 2WD LHD 9A/T SV TLWALB2-ZU8 SL TLWALC2-ZU8 Platinum TLWALG2-ZU8 SL TLWALC2-ZU7 Platinum TL ...
Dimensions
Unit: mm (in)
Overall length 5,325 (209.6) Overall width
(mirror folded) 2,115 (83.3) Overall height 1,945 (76.6)*1, *2, *6
1,955 (77.0)*3
1,980 (78.0)*4
1,990 (78.3)*5 Front tread 1,728 (68.0)*7
...
