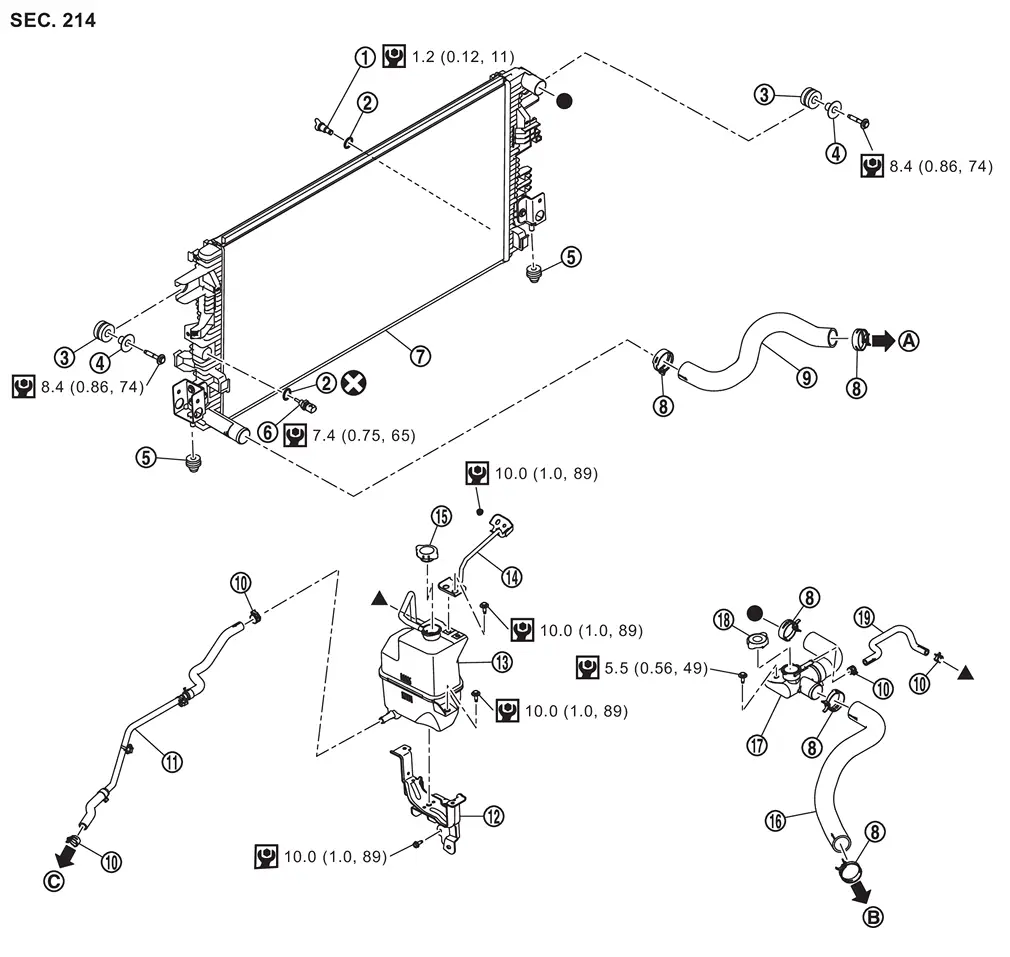

Nissan Armada 2025-2026 Service and Repair Manual: RADIATOR : Exploded View
 | Radiator drain cock |  | O-ring |  | Mounting rubber (upper) |
 | Collar |  | Mounting rubber (lower) |  | Engine coolant temperature sensor 2 |
 | Radiator |  | Clamp |  | Radiator hose (lower) |
 | Clamp |  | Reservoir tank tube |  | Reservoir tank bracket |
 | Reservoir tank |  | Reservoir tank support bracket |  | Reservoir tank cap |
 | Radiator hose (upper) |  | Radiator pipe assembly |  | Radiator cap |
 | Reservoir tank hose | ||||
 | To water pipe 2. Refer to Exploded View. |  | To multi-way control valve. Refer to MULTI-WAY CONTROL VALVE : Exploded View. |  | To water pipe 2. Refer to Exploded View. |
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 ,  Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Radiator
...
RADIATOR : Removal & Installation
WARNING:
REMOVAL
WARNING:
Never remove radiator cap and reservoir tank cap when engine is hot. Serious burns could occur from high-pressure engine coolant escaping from engine cooling system. Wrap a t ...
