Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
REMOVAL
Remove transmission assembly, refer to the following:
2WD models: Refer to Removal and Installation.
4WD models: Refer to Removal and Installation.
Remove drive plate. Refer to Removal and Installation.

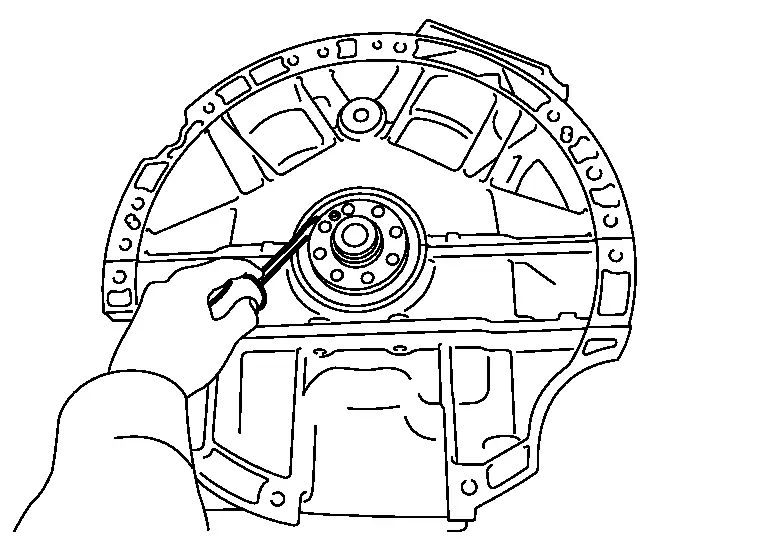

Remove rear oil seal with a suitable tool.
CAUTION:
Be careful not to damage crankshaft and cylinder block.
INSTALLATION
Install rear oil seal.
Install rear oil seal so that each seal lip is oriented as shown in the figure.
 | : Oil seal lip |
 | : Dust seal lip |
 | : Engine inside |
 | : Engine outside |
Press in rear oil seal (1) to the position as shown in the figure.
| : Cylinder block rear end face |
 | : 0 - 0.5 mm (0 - 0.020 in) |

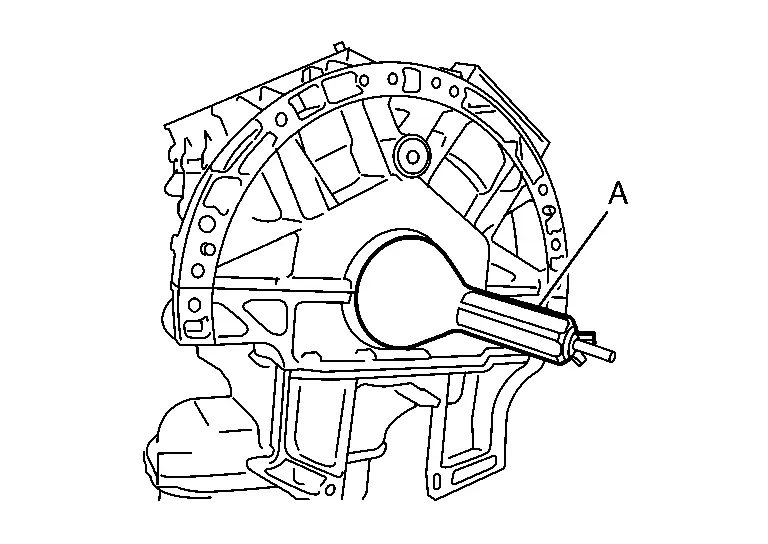

Using a suitable drift (A), press-fit until the height of rear oil seal is level with the mounting surface.
Suitable drift: outer diameter 100 mm (3.94 in), inner diameter 85 mm (3.35 in).
CAUTION:
Be careful not to damage crankshaft and cylinder block.
Press-fit straight and avoid causing burrs or tilting oil seal.
Install in the reverse order of removal after this step.
