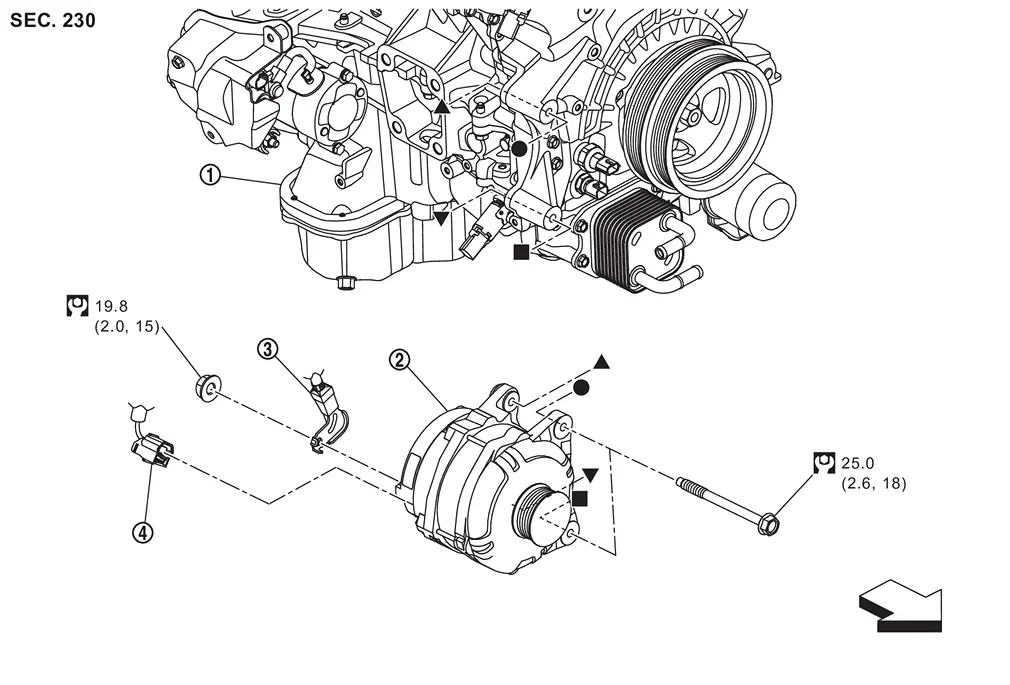

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Engine assembly |  | Alternator |  | “B” terminal harness |
 | Alternator harness connector | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Vr35ddtt
...
Removal and Installation
WARNING:
REMOVAL
Disconnect battery cable from negative terminal. Refer to Removal and Installation.
Remove drive belt. Refer to Removal & Installation.
Remove inlet air duct 2. Refer to Removal a ...
