Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
NOTE:
Perform ADDITIONAL SERVICE WHEN REPLACING 8CH CAN GATEWAY. Refer to Description.
REMOVAL
Remove instrument lower panel LH. Refer to Removal and Installation.
Remove front center console body assembly. Refer to Removal and Installation.
Remove center instrument lower panel. Refer to Removal and Installation.

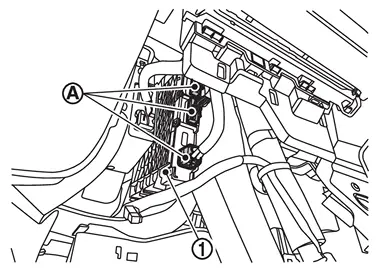

Remove 8CH CAN gateway
harness connectors
.
Pull out 8CH CAN gateway from the steering member.
INSTALLATION
Install in the reverse order of removal.
8ch Can Gateway
...
