Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
REMOVAL
Remove the front door finisher. Refer to Removal and Installation.
Disconnect front door woofer harness connector.

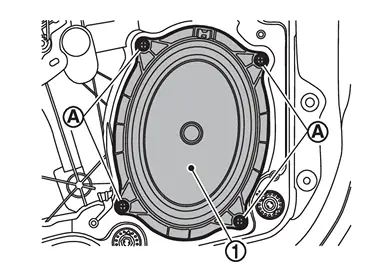

Remove the front door woofer mounting screws
, and then remove the front door woofer
.
INSTALLATION
Installation is the reverse order of removal.
