Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
REMOVAL
Remove the front door finisher. Refer to Removal and Installation.
Disconnect front door squawker harness connector.

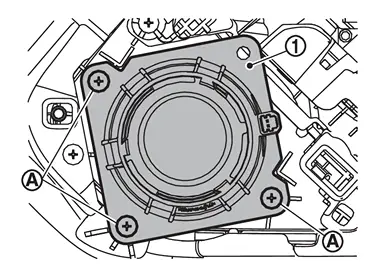

Remove the front door squawker mounting screws
, and then remove front door squawker
.
INSTALLATION
Installation is in the reverse order of removal.
Front Tweeter
...
