Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
REMOVAL
Remove the luggage side lower finisher. Refer to Removal and Installation.

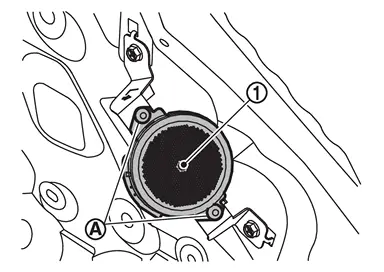

Remove rear pillar speaker mounting screws
, and then remove rear pillar speaker
.

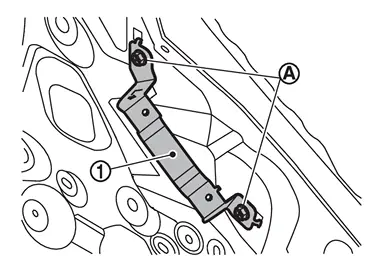

Remove bracket mounting bolts , and then remove bracket .
INSTALLATION
Installation is the reverse order of removal.
Exploded View
Rear pillar speaker Bracket : Vehicle front ...
