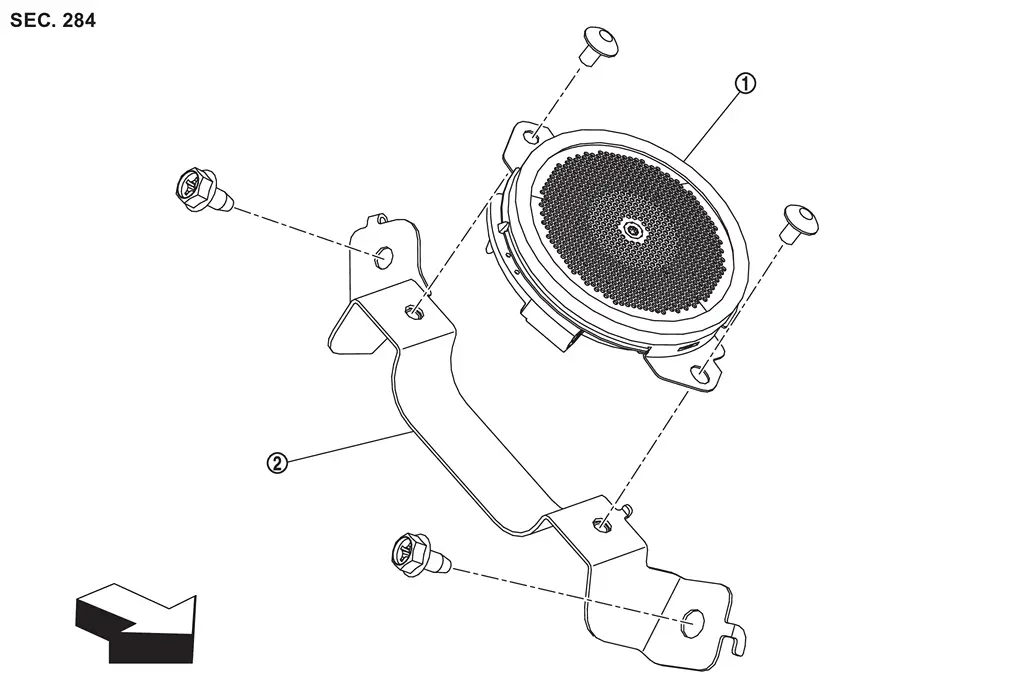

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Rear Pillar Speaker

...

Removal & Installation

REMOVAL Remove the luggage side lower finisher. Refer to Removal and Installation. Remove rear pillar speaker mounting screws , and then remove rear pillar speaker . Remove bracket mounting bolts , ...
