Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never disassemble the electronic shift selector.
When holding the electronic shift selector, hold the vehicle mounting part.
Never allow foreign materials to enter into electronic shift selector.
There is connector on the back of electric shift selector, therefore never press down on electric shift selector from above when it is placed on a flat surface.
Electric shift selector in the contains a strong magnet, persons with an electro-medical apparatus should keep it away from his/her body. Otherwise it may cause the electro-medical apparatus to malfunction.
Keep it away from magnetic objects such as magnetic cards and metal products (e.g. watches).
Never subject the electric shift selector to impact by dropping or hitting, water splash or high humidity.

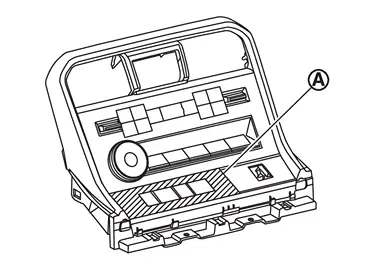

Never attach strong magnets such as smartphone magnets to the area
as shown in the figure.
When the electric shift selector is dropped or hit, never reuse it.
Removal
Remove front center console switch finisher assembly from center console assembly. Refer to Removal and Installation.
Remove electric shift selector mounting screws and remove electric shift selector from front center console switch finisher assembly.
Installation
Note the following, and install in the reverse order of removal.
CAUTION:
When the electric shift selector is replaced, perform "ADDITIONAL SERVICE WHEN REPLACING ELECTRIC SHIFT SELECTOR" Refer to Description.
When installing the electric shift selector to the front center console switch finisher assembly, perform the following procedure.
Push the electric shift selector until it engages to the front center console switch finisher assembly locator pin
.
Tighten the electric shift selector mounting screws in the order as shown in the figure.
: Vehicle front CAUTION:
Check that the front center console switch finisher assembly ribs
,
and
and the electric shift selector surface
are parallel before tightening the mounting screws.
Connect electric shift sensor harness connector.
Perform inspection after installation. Refer to Inspection.
Exploded View
Front center console switch finisher assembly Electric shift selector ...
Inspection
Inspection after Installation
Shift Button Operation
Check the shift button operation status according to the following procedure. When there is malfunction, repair or replace the electric shift selec ...
