Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove back door finisher. Refer to Removal and Installation.
Disconnect license plate lamp harness connectors.

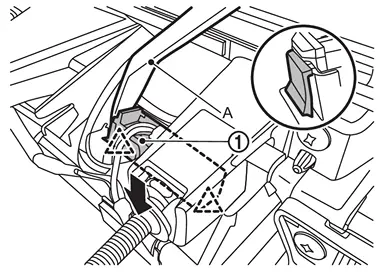

Remove back door opener switch assembly fixing pawls using a remover tool (A), and then remove back door opener switch
.
: Pawl
INSTALLATION
Install in the reverse order of removal.
