Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
CAUTION:
Perform this step when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
Drain engine coolant. Refer to ENGINE COOLANT : Draining.
Remove water hoses from A/T fluid warmer. Refer to Removal and Installation.

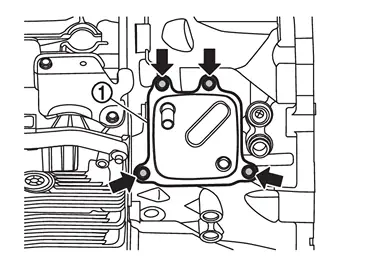

Remove A/T fluid warmer mounting bolts (
) and then remove A/T fluid warmer
.
Remove O-rings from A/T fluid warmer.
CAUTION:
Never reuse O-rings.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Never reuse O-rings.
Apply A/T fluid to the O-rings.
Make sure O-rings are securely seated in back of A/T fluid warmer before installing A/T fluid warmer.
Exploded View
A/T assembly A/T fluid warmer O-ring : N·m (kg-m, in-lb) : Always replace after every disassembly. : Apply ATF ...
