Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL

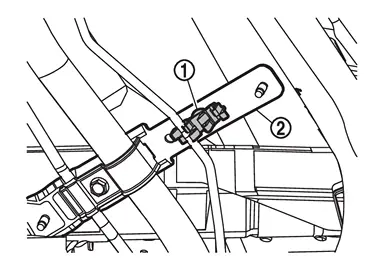

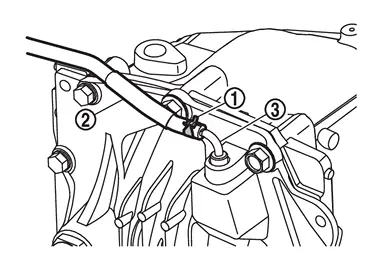

Remove the hose clamp
and separate air breather hose B
from air breather
.

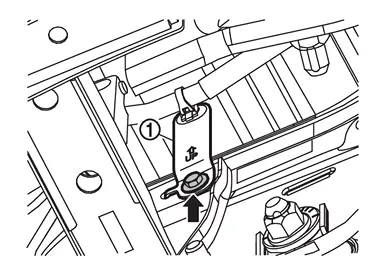

Remove clip E from bracket .
Remove bracket mounting bolt (
) and remove bracket .
Remove clip D from body frame .
Remove clip C from body frame .
Remove air breather hose A from air breather tube .
Remove air breather hose assembly.

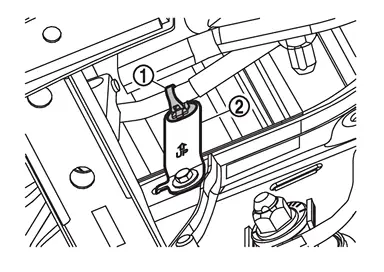

Remove clip B from bracket .
Remove clip A from bracket and remove air breather tube.
Separate each component part.
INSTALLATION
Note the following, and install in the reverse order of removal.
For non-reusable parts, refer to Exploded View.
When inserting air breather hose A to air breather tube, align the paint mark
of air breather hose A with the paint mark
of breather tube.
CAUTION:
Align paint mark
on each air breather hose.
When installing air breather to final drive assembly, Install air breather so that the paint mark
on it faced forward of the vehicle.
: Vehicle front When inserting air breather hose B into the air breather, align paint mark
on air breather hose B and tab on the hose clamp with the paint mark on the air breather.
Exploded View
Clip A Air breather tube Clip B Air breather hose A Clip C Clip D Hose connector Air breather hose B Bracket Clip E Hose clamp Air breather Rear final drive assembly : Vehicle front : NÂ ...
