Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Seat Belt Buckle LH and Connector Buckle
Remove luggage floor board LH. Refer to Removal and Installation.
Disconnect harness connector.

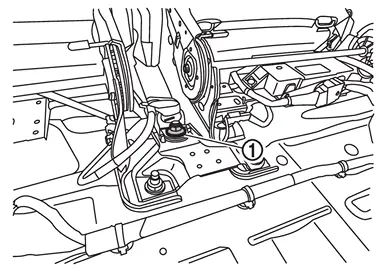

Remove seat belt buckle LH and connector buckle mounting anchor bolt
.
Pull out seat belt buckle LH and connector buckle from third seat.
Seat Belt Buckle RH and Center Seat Belt Buckle
Remove luggage floor board RH. Refer to Removal and Installation.
Disconnect harness connector.

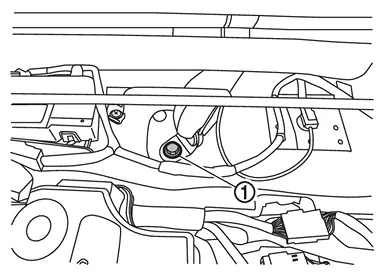

Remove seat belt buckle RH and center seat belt buckle mounting anchor nut .
Pull out seat belt buckle RH and center seat belt buckle from third seat.

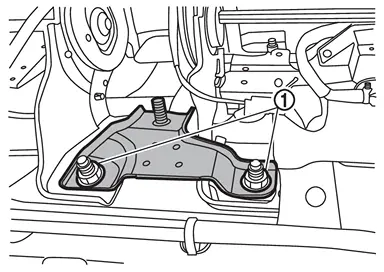

Remove anchor plate lower mounting nuts , and then remove anchor plate lower.
INSTALLATION
Install in the reverse order of removal.
Inspection
AFTER A COLLISION
WARNING:
To avoid the risk of death or severe injury:
Replace any seat belt assembly (including anchor bolts) if:
Anchor bolts are deformed or worn out.
PRELIMINARY CHECKS
Repeat st ...
