Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove glass mirror. Refer to Removal and Installation.

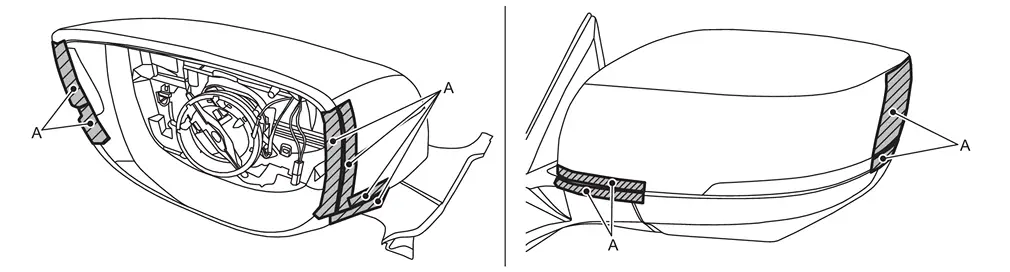

Apply protective tapes (A) on the part to protect it from damage.

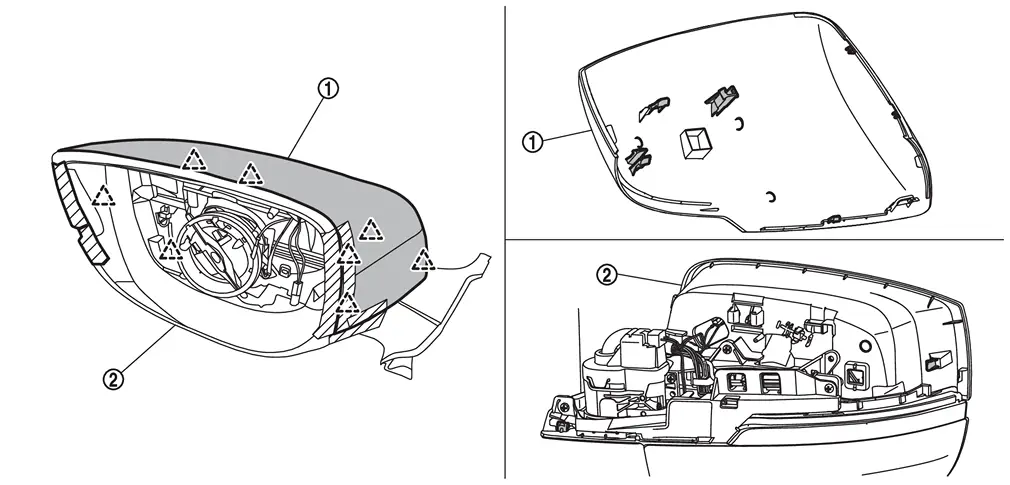

Disengage door mirror cover
fixing pawls from door mirror housing assembly
.
 | : Pawl |
Remove door mirror cover.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
After installation, visually check that fixing pawls are securely engaged.
