Nissan Armada 2025-2026 Service and Repair Manual: Body Center Marks
Factory marks exist on certain parts of the body to indicate the vehicle center. When repairing the vehicle frame (members, pillars, etc.) damaged in an accident, the most accurate and effective repair will be achieved by using these marks together with body alignment specifications.
 : Vehicle front |
Unit: mm (in)

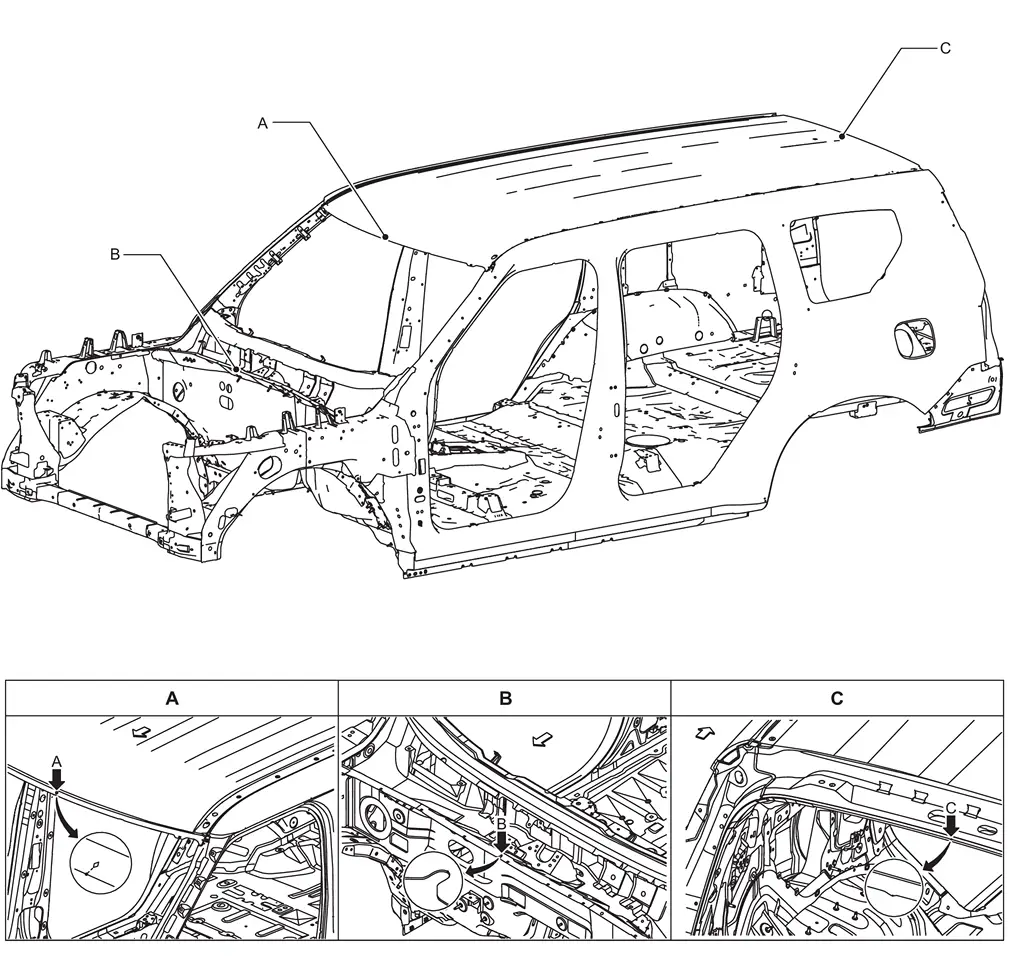

| Points | Portion | Marks |
|---|---|---|
| A | Front roof | Embossment |
| B | Upper dash | Indent |
| C | Rear roof | Indent |
All dimensions indicated in the figures are actual.
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
Measurements should be taken at the center of the mounting holes.
A star mark (

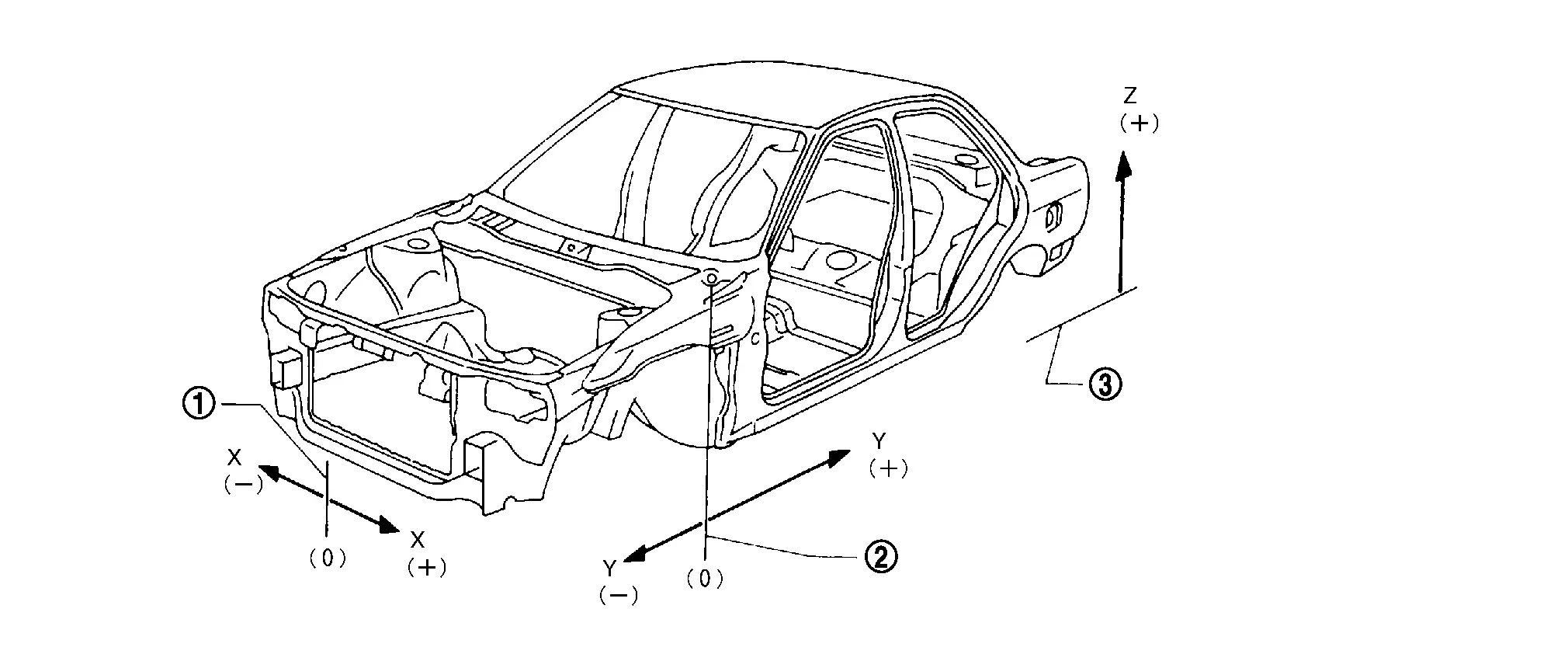

) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
″Z″: Imaginary base line [300 mm (11.81 in) below datum line (″0Z″ at design plan)]
 | Vehicle center |  | Front axle center |  | Imaginary base line |
Body Alignment
...
Engine Compartment
WARNING:
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.
Unit: mm (in)
Unit: mm (in)
«The others» Point Dime ...
