Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove rear A/C unit assembly. Refer to Removal and Installation.
Disconnect rear blower unit harness connector.

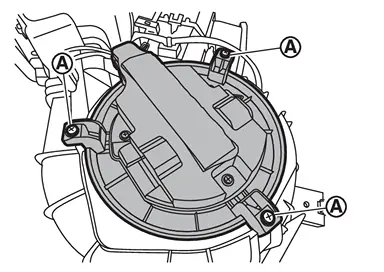

Remove fixing screws
, and then remove rear blower motor.
INSTALLATION
Install in the reverse order of removal.
Exploded View
Rear A/C unit assembly Rear blower motor : Vehicle front ...
