Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Remove front grille. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Remove radiator air guide upper. Refer to Removal and Installation.
Disconnect high-pressure flexible hose from condenser inlet pipe. Refer to Removal and Installation.
Remove front bumper side finisher LH. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation

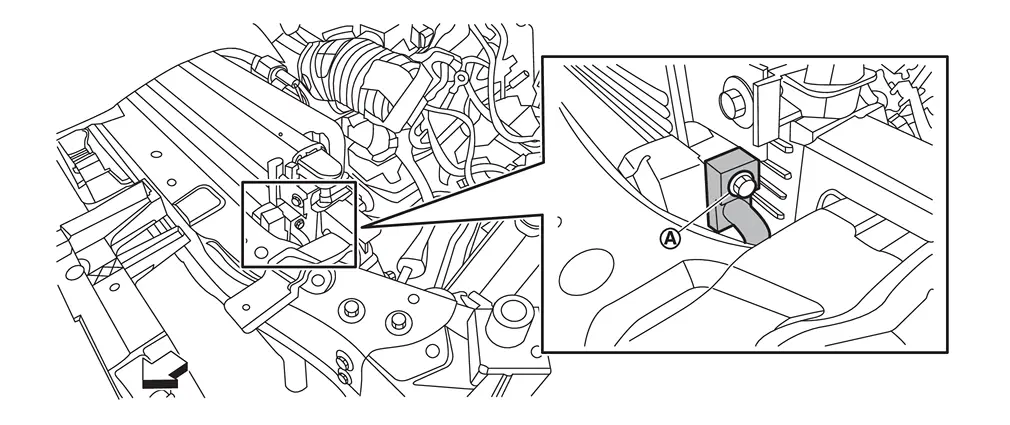

Remove mounting bolt
.

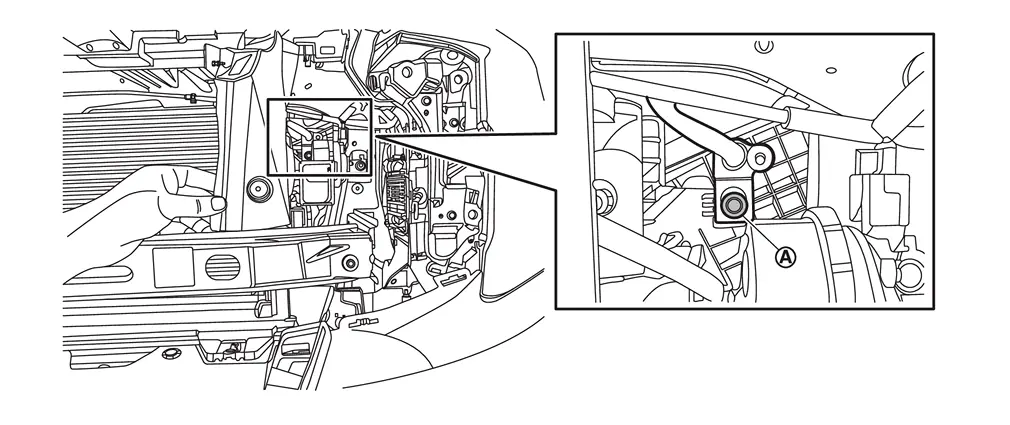

Remove mounting bolt , and then disconnect condenser inlet pipe from condenser & liquid tank assembly.
 | : Vehicle front |
Remove condenser inlet pipe from vehicle.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
