Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Remove front grille. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Remove front bumper fascia. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Disconnect high-pressure pipe from condenser outlet pipe. Refer to Removal and Installation.

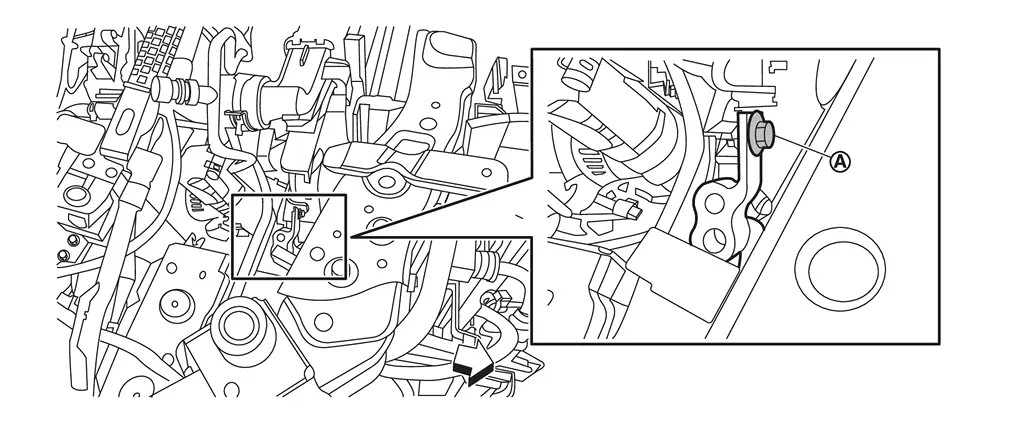

Remove mounting bolt
.
 | : Vehicle front |

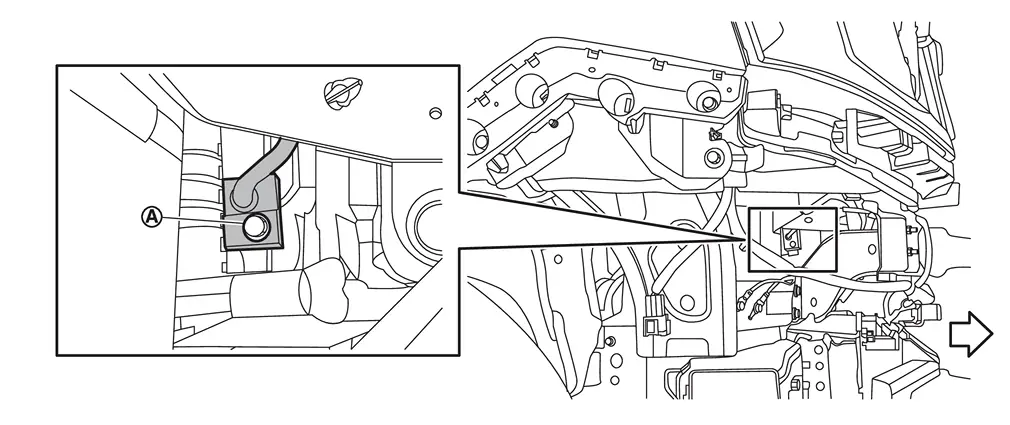

Remove mounting bolt , and then disconnect condenser outlet pipe from condenser & liquid tank assembly.
| : Vehicle front |
Remove condenser outlet pipe from vehicle.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
