Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove luggage side lower finisher RH. Refer to Removal and Installation.

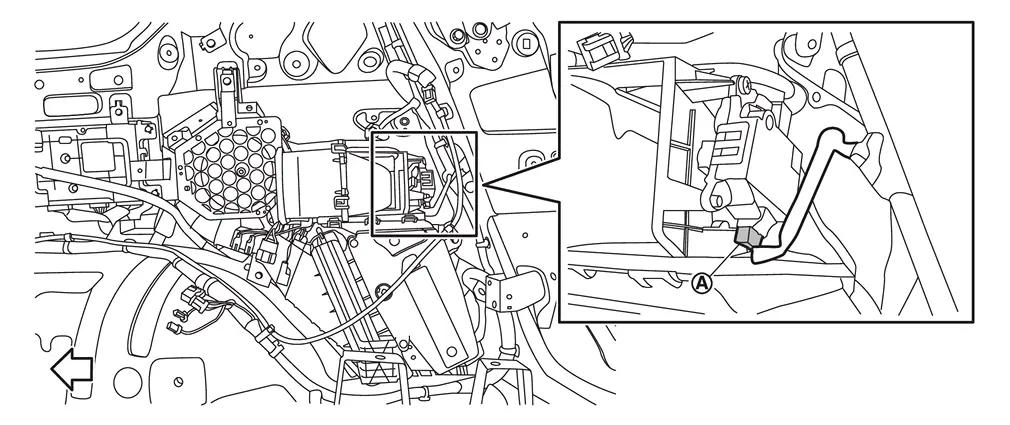

Disconnect rear mode door motor harness connector
.
 | : Vehicle front |

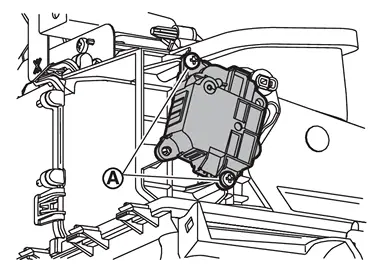

Remove fixing screws , and then remove rear mode door motor.
INSTALLATION
Install in the reverse order of removal.
