Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage front door panel.
REMOVAL
Remove front door finisher. Refer to Removal & Installation.

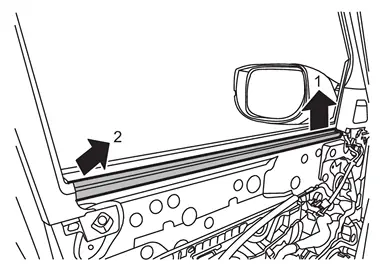

Remove inside seal according to numerical order 1→2 indicated by arrows as shown in the figure.

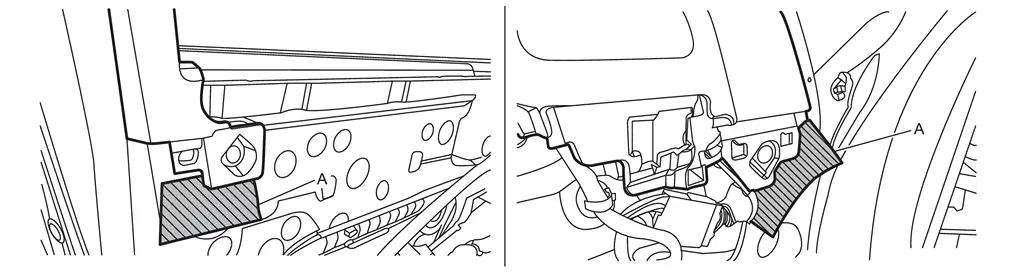

Apply protective tapes (A) on front door panel to protect it from damage.

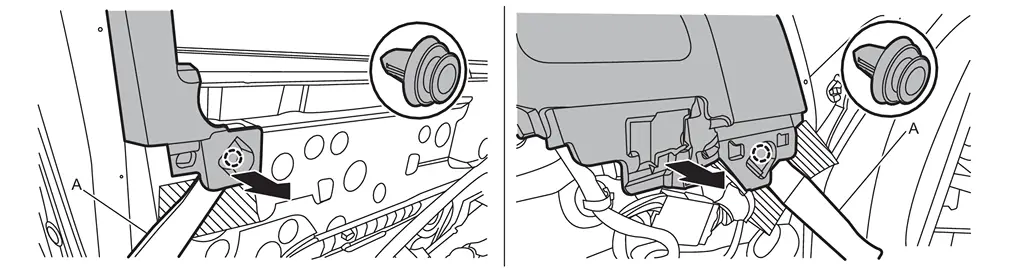

Disengage front door sash inner cover fixing clips using a remover tool (A).
 | : Clip |

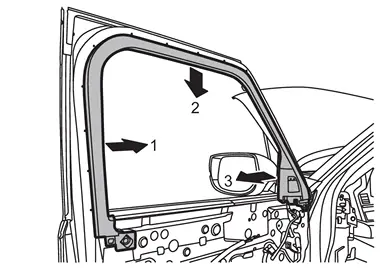

Remove front door sash inner cover according to numerical order 1→3 indicated by arrows as shown in the figure.
Disconnect tweeter harness connector, and then remove front door sash inner cover.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check in advance that clips are accurately aligned with the portions on front door panel, and then install by pressing in.
