Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage rear door panel.
REMOVAL
Remove rear door finisher. Refer to Removal & Installation.

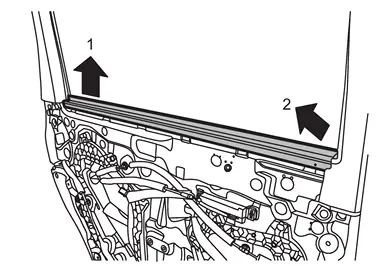

Remove inside seal according to numerical order 1→2 indicated by arrows as shown in the figure.

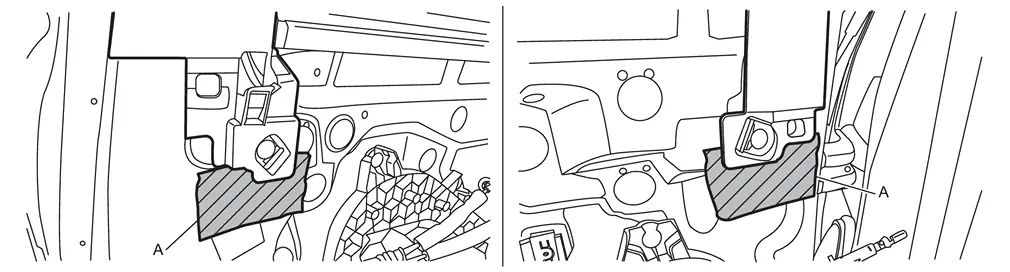

Apply protective tapes (A) on rear door panel to protect it from damage.

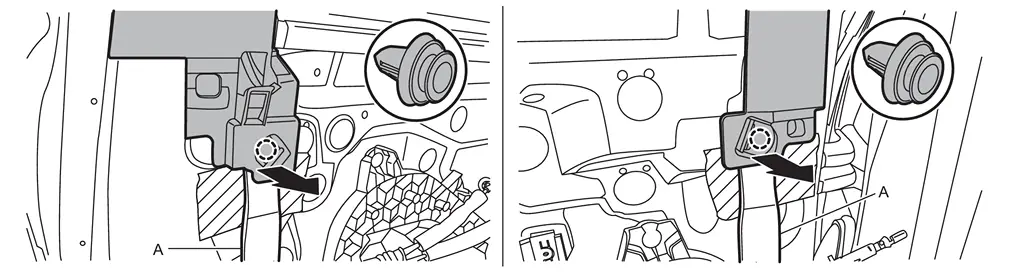

Disengage rear door sash inner cover fixing clips using a remover tool (A).
 | : Clip |

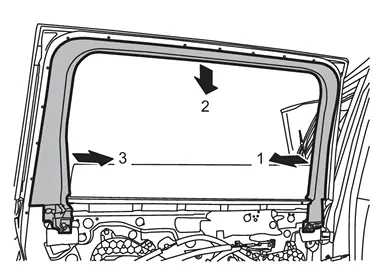

Remove rear door sash inner cover according to numerical order 1→3 indicated by arrows as shown in the figure.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check in advance that clips are accurately aligned with the portions on rear door panel, and then install by pressing in.
