Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the body panel.
REMOVAL
Remove front kicking plate. Refer to Removal and Installation.
Remove hood lock control handle (driver side). Refer to Removal and Installation.
Disengage dash trim clip
from dash side finisher.

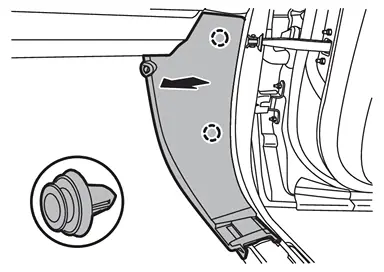

Disengage dash side finisher fixing clips, and then remove dash side finisher.
 | : Clip |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check in advance that clip is accurately aligned with the portions on body panel, and then install by pressing in.
Kicking Plate
...
