Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Remove air cleaner body. Refer to Removal and Installation.

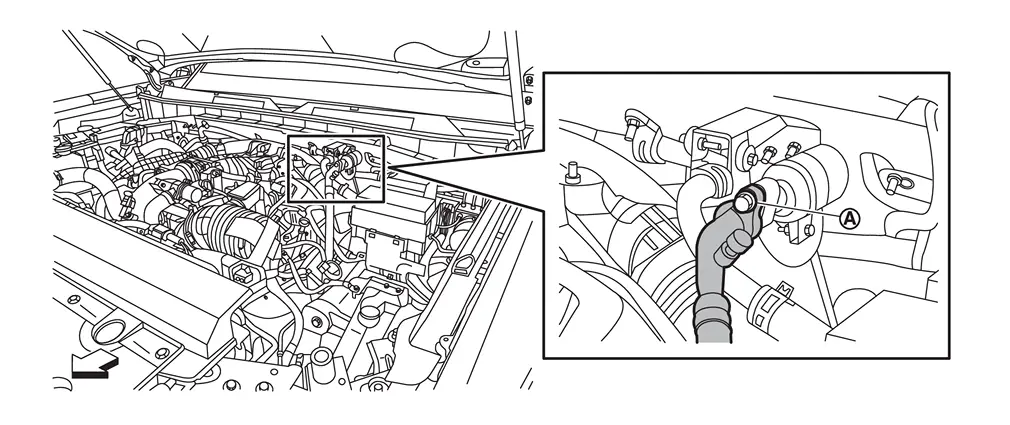

Remove mounting bolt
, and then disconnect low-pressure flexible hose from low-pressure pipe.
 | : Vehicle front |

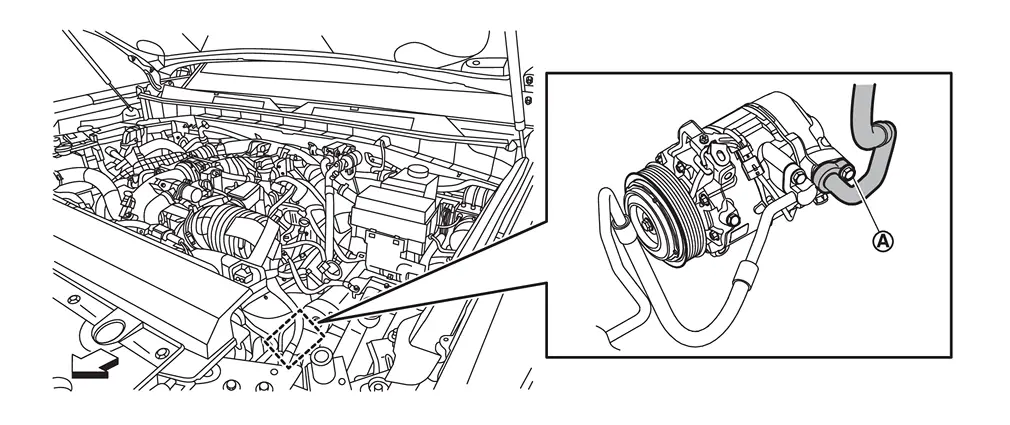

Remove mounting bolt , and then remove low-pressure flexible hose from A/C compressor.
| : Vehicle front |
Remove low-pressure flexible hose from vehicle.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
