Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Luggage Floor Rear Board
Remove luggage floor box. Refer to Removal and Installation.

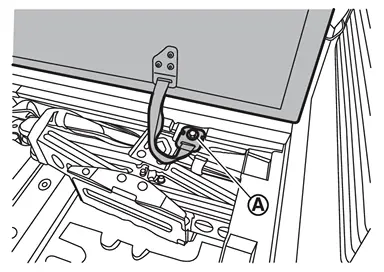

Remove belt bracket mounting bolt
of luggage floor rear board, and then remove luggage floor rear board.
Luggage Floor Board RH
Fold down the third seat RH forward.

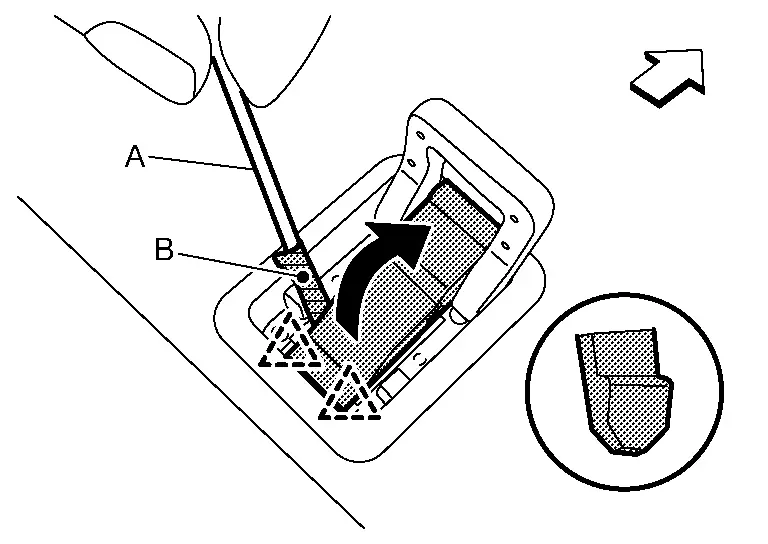

Remove rope hook.Disengage rope hook cover fixing pawls using a remover tool (A), and then open rope hook cover.
CAUTION:
Use a remover tool wrapped in protective tape (B) to prevent damage the parts.
 | : Pawl |
 | : Vehicle front |

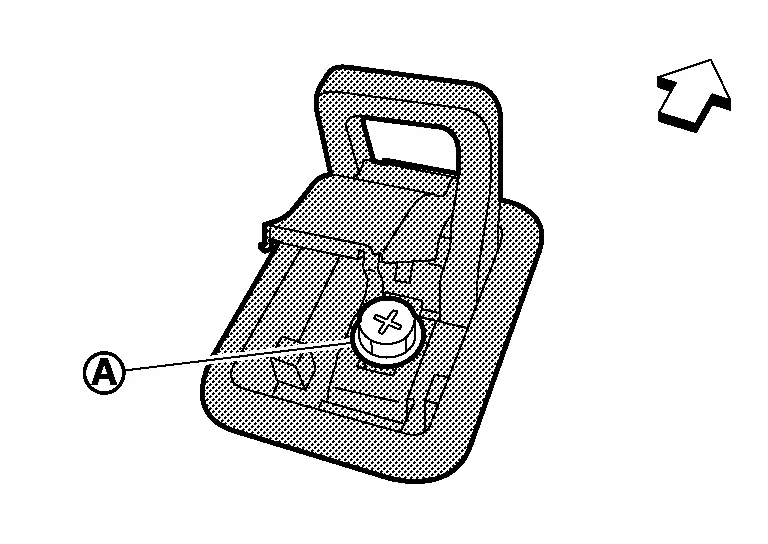

, and then remove rope hook.
| : Vehicle front |

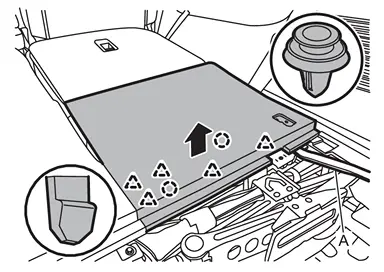

Disengage luggage floor board RH fixing pawls and clips using a remover tool (A), and then remove luggage floor board RH.
 | : Clip |
| : Pawl |
Luggage Floor Board LH
Remove luggage floor board RH.
Fold down the third seat LH forward.
Remove rope hook.Disengage rope hook cover fixing pawls using a remover tool (A), and then open rope hook cover.
CAUTION:
Use a remover tool wrapped in protective tape (B) to prevent damage the parts.
| : Pawl |
| : Vehicle front |
, and then remove rope hook.
| : Vehicle front |

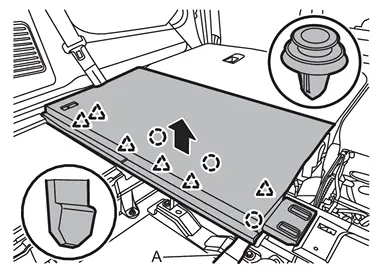

Disengage luggage floor board LH fixing pawls and clips using a remover tool (A), and then remove luggage floor board LH.
| : Clip |
| : Pawl |
Luggage Floor Bracket
Remove luggage floor board (LH and RH).

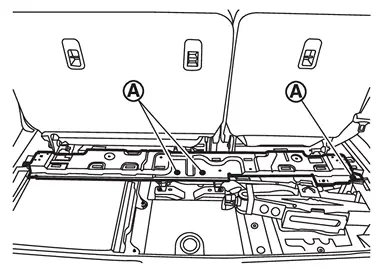

Remove luggage floor bracket mounting bolts .
Remove rear outer side mounting nuts of third seat. Refer to Removal and Installation.
Remove luggage floor bracket.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
When installing luggage floor board, check that clips and pawls are securely fitted in luggage floor bracket holes and press them in.
