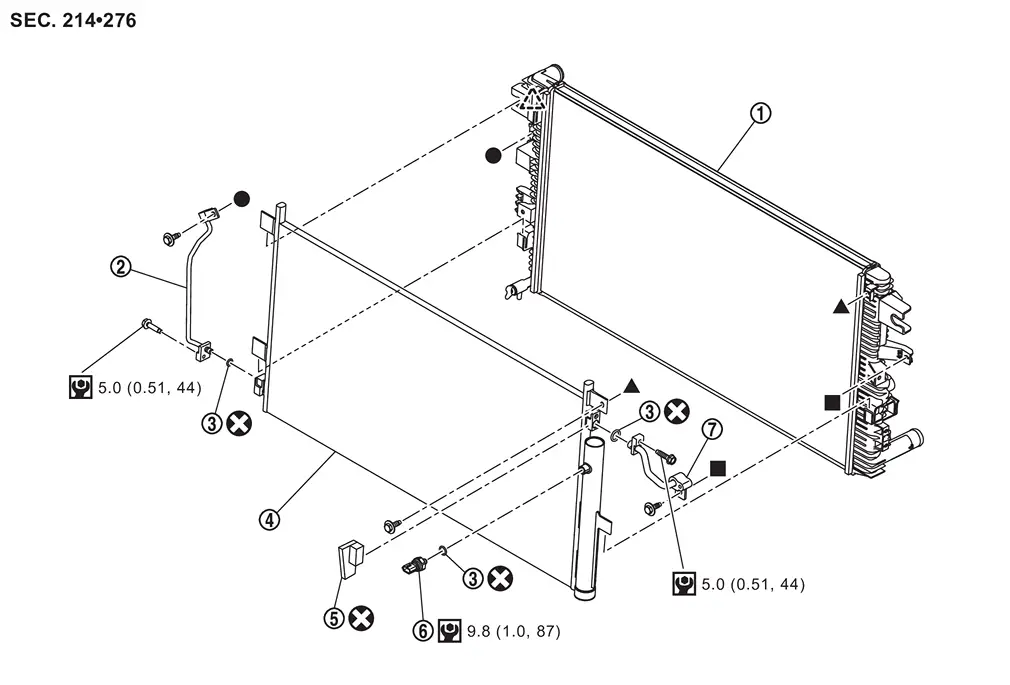

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Radiator |  | Condenser outlet pipe |  | O-ring |
 | Condenser & liquid tank assembly |  | Condenser seal |  | Refrigerant pressure sensor |
 | Condenser inlet pipe | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Condenser
...
Condenser
...
