Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the body panel.
REMOVAL
CAUTION:
Remove luggage side lower finisher. Refer to Removal and Installation.

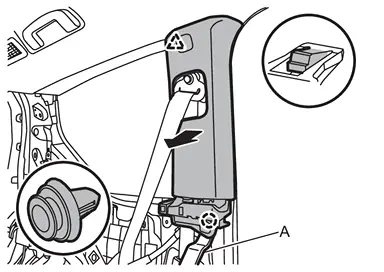

Apply protective tape (A) on rear pillar finisher to protect it from damage.
Disengage seat belt finisher fixing pawls using a remover tool (A).
 | : Pawl |
Apply protective tape (A) on rear pillar finisher to protect it from damage.
Disengage bolt cap fixing pawls using a remover tool (A), and then remove bolt cap.
| : Pawl |
Remove rear pillar finisher mounting bolt.
Disengage rear pillar finisher fixing clip and pawl using a remover tool (A), and then remove rear pillar finisher.
 | : Clip |
| : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Visually check clip for deformation and damage during installation. Replace with new ones if necessary.
